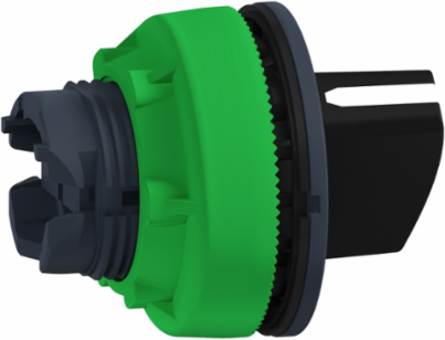

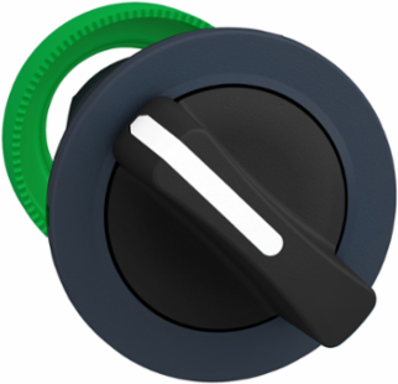

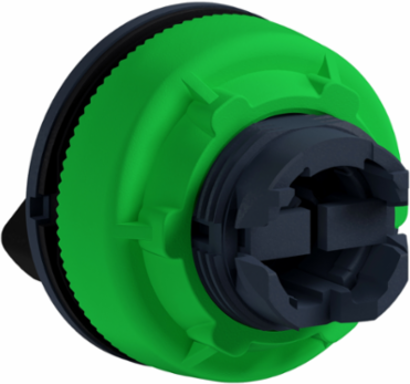

Schneider Electric ZB5FD2 Flush mounted selector switch head, Harmony XB5, plastic, black, 30mm, 2 positions, stay put
- MPN: ZB5FD2
- PPN: SCH-ZB5FD2
CAD
$47.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Physical Attributes
- Cap Operator Or Lens Color
- black
- Cad Overall Height
- 37 mm
Cad Overall Depth46 mm
Cad Overall Width37 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- dark grey plastic
- Electrical Composition Code
- C3 6 single front mounting, C4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting
- Operator Profile
- black standard handle
- Protective Treatment
- TH
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Cap Operator Or Lens Color
- black
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0 kg CO2 eq., 0.049186493
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.2 kg CO2 eq., 0.1906676349
- Operator Pos Information
- 2 positions 90°
- Certificate Agency
- CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 28 %
- Device Short Name
- ZB5
- Group Of Product
- non illuminated
- Main Group
- selector switch
- Operator Position Information
- 2 positions 90°
- Product Availability
- Stock - Normally stocked in distribution facility
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Sustainable Packaging
- Yes
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Type Of Operator 3 Type Of Operator
- stay put
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Recyclability Potential, In %
- 23
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable1, no
Mounting Diameter30.5 mm
Product Or Component Typehead for selector switch
Shape Of Signaling Unit Headround
Type Of Operatorstay put
Carbon Footprint Of The Distribution Phase A40.003661426, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0095349703, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Operator Profile 1 Cap Operator Or Lens Colorblack
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308008EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Metal Content60 %
Compatibility CodeZB5
Gcr BridgeZB5FDCUST01
Head Typebuilt-in-flush
Mechanical Durability1000000 cycles
Overvoltage Categoryclass II conforming to IEC 60536
Range Of ProductHarmony XB5
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.3 kg CO2 eq.
Warranty In Months18
Pep CodeENVPEP2308008_V1-EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69K, IP69
- Take Back
- No
- Recycled Metal Content At Cr Level
- 60 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.2530505242
- Environmental Disclosure
- ENVPEP2308008_V1-EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2308008_V1-EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308008EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- head for selector switch
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Overview Attributes
- Device Presentation
- basic element
