APC

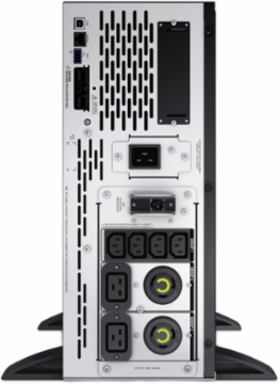

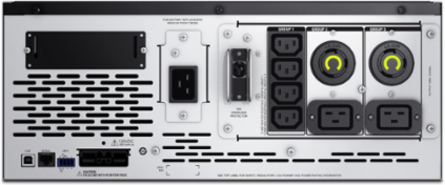

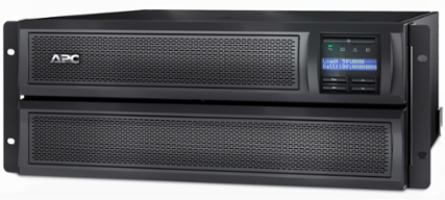

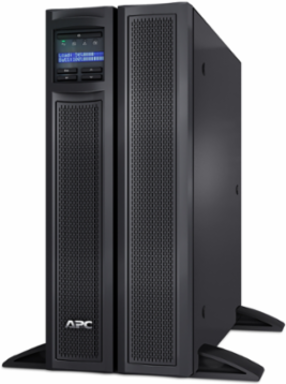

APC SMX3000HVTUS Smart-UPS X 3000VA Line Interactive 4U Rack/Tower Converter, 208V Output

  • MPN: SMX3000HVTUS
  • UPC: 731304340393
  • PPN: APC-SMX3000HVTUS

CAD

$4798.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L6-20P input, 2x NEMA L6-20R, 4x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. The UPS is TAA Complaint.

Features

  • 3kVA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
  • User-selectable high voltage setting of 200V-240V
  • Add up to 10 external battery packs (SMX120BP)
  • Short depth UPS provides extra space for cable management
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
  • Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
  • Ideal for servers, storage, networking & commercial applications

Documentation & Downloads

Specifications

Additional

Output Power Capacity3000 VA
Input Voltage208 V
Input Connection TypeNEMA L6-20P
TopologyLine Interactive
Surge Energy Rating645 J
Input Frequency50/60 Hz +/- 3 Hz auto-sensing
Crest Factor3:1
Height17.01 in (432 mm)
Depth19.02 in (483 mm)
Typical Recharge Time3 h
Battery Charge Power245 W rated
Acoustic Level55 dBA
Operating Altitude0-10000 ft
Operating Temperature Range32-104 F (0-40 C)
Relative Humidity0-95%
CertificationsC-tick, CE, CSA, GOST, IRAM, TAA, VDE
RoHSCompliant with Exemptions
Mercury FreeYes
Replacement BatteryAPCRBC143US
Mount Positionfront
Power Rating2700 W
Output Voltage208 V
Output Connection Type2 NEMA L6-20R, 4 IEC 320 C13, 3 IEC Jumpers, 2 IEC 320 C19
Waveform TypeSine wave
Harmonic DistortionLess than 5%
Output Frequency50/60 Hz +/- 3 Hz sync to mains
Rack Height4U
Width7.01 in (178 mm)
Weight85.19 lb (38.64 kg)
Battery TypeLead-Acid battery
Battery Life3-5 years
Heat Dissipation184 Btu/h
Storage Altitude0-50000 ft
Storage Temperature Range5-113 F (-15-45 C)
Country of OriginPhilippines
ComplianceTAA
ColorBlack
Customs Number8504407018
Product Orientationlower
Warranty36 months
Smart-UPS X 3000VA Line Interactive 4U Rack/Tower Converter, 208V Output
Smart-UPS X 3000VA Line Interactive 4U Rack/Tower Converter, 208V Output
Smart-UPS X 3000VA Line Interactive 4U Rack/Tower Converter, 208V Output
Smart-UPS X 3000VA Line Interactive 4U Rack/Tower Converter, 208V Output
