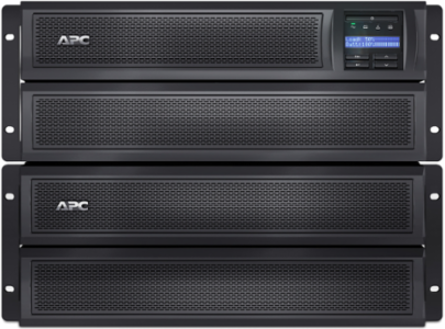

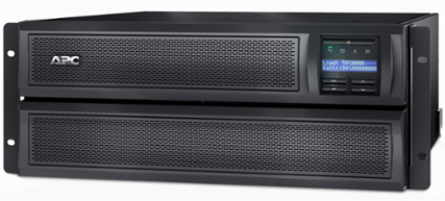

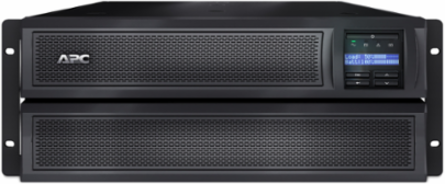

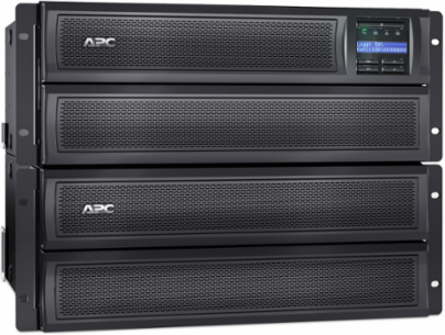

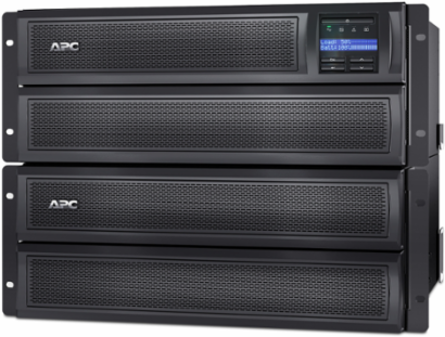

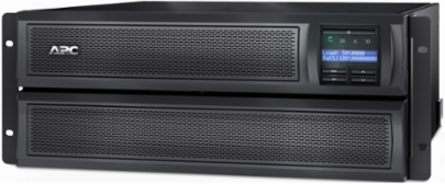

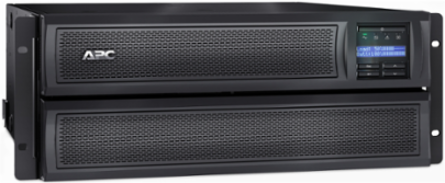

APC SMX2000LVNC Smart-UPS X 2000VA Line Interactive 4U Rack/Tower Convertible 120V Sine Wave
- MPN: SMX2000LVNC
- UPC: 731304292593
- PPN: APC-SMX2000LVNC
CAD
$4522.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS X 2000VA Line Interactive 4U Rack/Tower Convertible 120V Sine Wave
Features
- StruxureWare Data Center Expert compatible — Enables centralized management via StruxureWare Data Center Expert.
- APC USB communications — Enables communications with SMX, SMT, SRT and SURTD Smart-UPS models using historical APC proprietary USB usages.
- Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions. — Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.
- Boost and Trim Automatic Voltage Regulation (AVR) — Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Serial connectivity — Provides management of the UPS via a serial port.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling. — Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- UPS recognizes when external battery packs are attached and automatically adjusts runtime. — UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Provides for remote management and control of the UPS over a network out of the box. — Provides for remote management and control of the UPS over a network out of the box.
- Disconnected battery notification — Warns when a battery is not available to provide backup power.
- Load shedding — Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups).
- Sequenced network shutdown and reboot — Customize network shutdown and reboot sequence of connected servers and UPSs.
- Outlet group control — Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
- Scalable runtime — Allows additional run time to be quickly added as needed.
- Adjustable voltage sensitivity — Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable voltage-transfer points — Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible alarms — Provides notification of changing utility power and UPS power conditions
- Automatic restart of loads after UPS shutdown — Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test — Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- Hot-swappable batteries — Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Multiple mounting methods — Allows for standardization on one product for use in different environments.
- Network manageable — Provides remote power management of the UPS over the network.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance

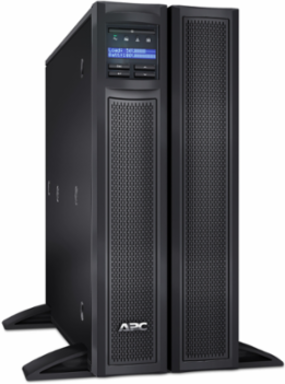

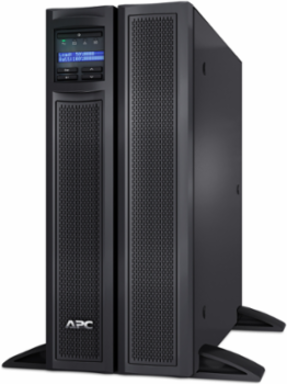

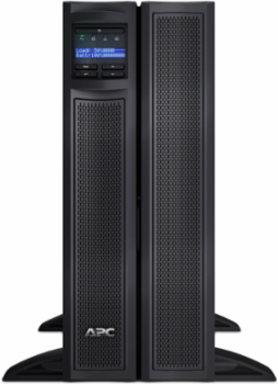

- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Safety-agency approved — Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
- USB connectivity — Provides management of the UPS via a USB port (not available on all models).
- User-replaceable batteries — Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 1920 VA, 1800 W
- Input Voltage
- 120 V
- Output Waveform
- Sine wave
- Battery Type
- Lead-Acid battery
- Surge Energy Rating
- 540 J
- Dimensions (HxWxD)
- 17.01 in x 7.01 in x 19.02 in (432 mm x 178 mm x 483 mm)
- Input Connection Type
- NEMA 5-20P
- Mounting Type
- Rack-mounted, front, lower preference, two post mountable
- Storage Temperature Range
- 5 to 113 °F (-15 to 45 °C)
- Storage Altitude
- 0 to 50,000 ft (0 to 15,240 m)
- Noise Level
- 55 dBA
- Battery Life
- 3-5 years
- Battery Charge Power
- 229 W
- Certifications
- BSMI, CSA, NOM, TÜV, VCCI Class A
- California Proposition 65
- Prop 65 Compliant
- Color
- Black
- Topology
- Line Interactive
Nominal Output Voltage120 V
Frequency50/60 Hz ±3 Hz
Transfer Time4 ms typical, 8 ms maximum
Typical Recharge Time3 h
Rack Units4U
Weight85.19 lb (38.64 kg)

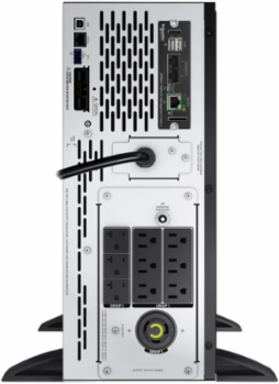

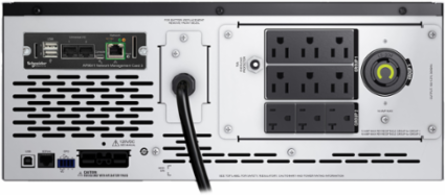

Output Connection Types6 NEMA 5-15R, 3 NEMA 5-20R, 1 NEMA L5-20R
Operating Temperature Range32 to 104 °F (0 to 40 °C)
Operating Altitude0 to 10,000 ft
Relative Humidity0 to 95 %
Heat Dissipation203 Btu/h
Battery Slots1 filled, 0 empty
Equipment Protection PolicyLifetime $150,000
RoHSCompliant with Exemptions
Mercury FreeYes
Country of OriginPhilippines
Replacement BatteryAPCRBC143
