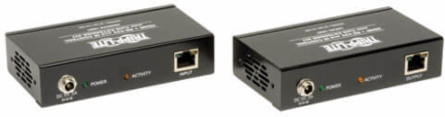

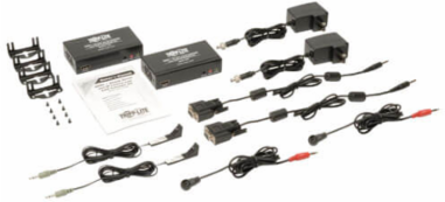

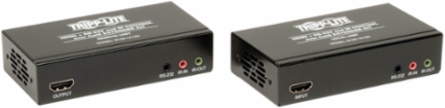

Tripp Lite B126-1A1SR HDMI Extender Kit, 328 ft Range, 4K Support, RS-232 Serial & IR Control
- MPN: B126-1A1SR
- UPC: 037332171108
- PPN: TRP-B126-1A1SR
CAD
$903.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Transmit HDMI video and audio, RS-232 serial and IR Remote Control signals over a single Cat5e/6/6a cable up to 328 ft. to a projector, monitor or television. Ideal for digital signs and trade show presentations.
Features
- Extends a 3840 x 2160 (4K x 2K) @ 24/30Hz signal up to 328 ft. (100 m)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Controls RS-232 serial devices at baud rates up to 115 Kbps
- Works with all operating systems and HDMI video sources
- Plug and play—no software or drivers to install
- 1-year limited warranty
- Extends a 3840 x 2160 (4K x 2K) @ 24/30Hz Ultra High Definition (UHD) signal up to
- Extends a computer video signal of 1920 x 1200 @ 60 Hz or HD signal of 1080p @ 60 Hz up to 328 ft. (100 m) with Cat5e/6 patch cable (N202-Series)
Documentation & Downloads
Specifications
Additional
- Signal Range
- 328 ft (100 m)
- Supported Audio
- 7.1-channel surround sound, DTS-HD, Dolby TrueHD
- IR Remote Control Frequency
- 39 KHz, 2-way
- Power Output
- 5V, 3A
- Operating Temperature Range
- 14 to 167 F (-10 to 75 C)
- Relative Humidity
- 0% to 85%, Non-Condensing
- Receiver Unit Weight
- 0.85 lbs (0.39 kg)
- Transmitter Unit Weight
- 0.85 lbs (0.39 kg)
- Rackmountable
- Yes
- Connector Plating
- Nickel
- HDCP Specification
- 1.4
- TAA Compliance
- Yes
- External Power Supply Certifications
- FCC, RoHS, UL, cUL
- Color
- Black
Max Supported Video Resolution3840 x 2160 (4K x 2K) @ 24/30Hz
RS-232 Baud Rate115 Kbps full-duplex
Power Input100-240V, 50/60Hz, 1.0A
Signal Range328 ft (100 m)
Storage Temperature Range-4 to 176 F (-20 to 80 C)
Receiver Unit Dimensions1.1 x 4.5 x 2.5 in (2.7 x 11.5 x 6.24 cm)
Transmitter Unit Dimensions1.1 x 4.5 x 2.5 in (2.7 x 11.5 x 6.24 cm)
Recommended Category CableCat5/Cat5e/Cat6 cables
MaterialSECC Steel
HDMI Specification1.4
Supported Video Format3D video
External Power Supply Plug(s)NEMA 1-15P North America
CertificationsTested to FCC, RoHS, REACH
