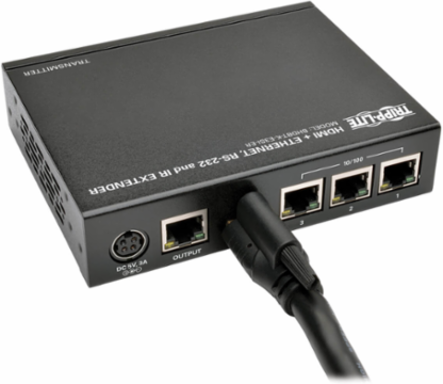

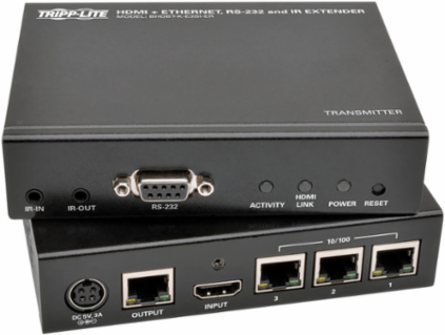

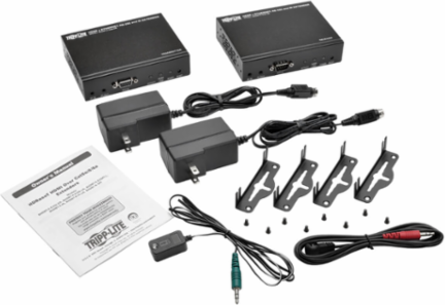

Tripp Lite BHDBT-K-E3SI-ER HDBaseT HDMI Extender Kit, 500 ft, 1080p, Ethernet, RS-232, IR Control
- MPN: BHDBT-K-E3SI-ER
- UPC: 037332188175
- PPN: TRP-BHDBT-K-E3SI-ER
CAD
$723.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

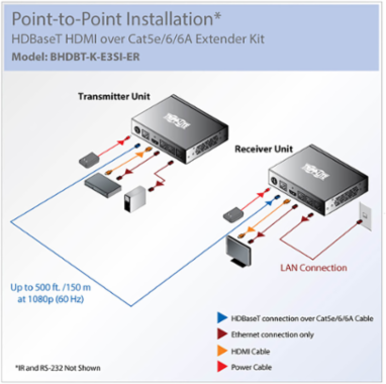

Extends HDMI video/audio, Ethernet, RS-232 serial and IR control signals over a single Cat5e/6/6a cable to a projector, monitor or television up to 500 ft. from the source.
Features
- Ideal for digital signs, classrooms and trade show booths
- Built-in 10/100 Ethernet ports on transmitter and receiver
- Extends a 1920 x 1080 (1080p) signal up to 500 ft.
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Controls RS-232 serial devices at baud rates up to 115 Kbps
- 1-year limited warranty
Specifications
Additional
- Max Range at 1080p
- 500 ft
- Alternative Max Resolution Ranges
- 480i, 480p, 640x480, 720p, 800x600, 1024x768, 1080i, 1440x900, 1600x1200 at 500 ft
- RS-232 Serial Extension Support
- Yes, 115 Kbps
- AC Adapter Input
- 100-240V, 50/60 Hz, 1A
- Audio Support
- 7.1-channel surround, DTS-HD, Dolby TrueHD
- HDMI Ports
- Locking HDMI (FEMALE) on transmitter and receiver sides
- DB9 Connectors
- DB9 (FEMALE) on side A, DB9 (MALE) on side B
- Cable Type
- Cat5e/6/6a
- Color
- Black
Resolution Support1920 x 1080 (1080p) @ 60 Hz
Ethernet Extension Support10/100 Mbps, Built-in on transmitter and receiver
IR Remote Extension SupportYes, 39 KHz frequency
AC Adapter Output5V, 3A
Video Features3D video, EDID, HDCP
RJ45 Ports(3) RJ45 (FEMALE) each side
Ports1
TechnologyHDBaseT; HDMI; Serial (RS232); IR
Product Warranty1-year limited
