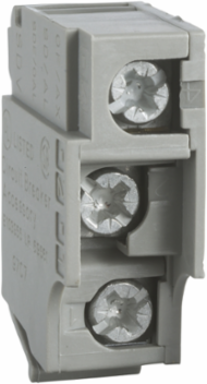

Schneider Electric GV7AE11 Auxiliary contact block, TeSys GV7, 1 C/O standard
- MPN: GV7AE11
- UPC: 785901566908
- PPN: SCH-GV7AE11
CAD
$49.46
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
GV7AE11 is an auxiliary contact block for TeSys GV7 motor circuit breakers from Schneider Electric. Compatible with all GV7 models, it includes 1 NO/NC changeover contact rated for AC and DC operation and performs OF position or SD trip functions. GV7AE11 is an auxiliary contact block for TeSys GV7 motor circuit breakers from Schneider Electric. Compatible with all GV7 models, it is installed inside the circuit breaker. It includes 1 NO/NC changeover contact rated for AC operation until 690V and DC operation until 250V and performs OF poles position or SD trip indication depending on its internal position. Auxiliary contact block, NO+NC changeover type, to be located inside a GV7 circuit breaker. The internal position determines the function to be performed , OF poles position, SD trip indication. Fault discrimination between thermal or magnetic tripping is possible using a GV7AD111 or GV7AD112 auxiliary device. Rated for 50 000 Close-Open cycles operation in AC-12/AC-15 and DC-12/DC-14.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, United States |
|---|
Complementary Attributes
| Minimum Switching Current | 5 mA |
|---|
| Minimum Switching Voltage | 17 V |
|---|
Important Information Attributes
| Protection Type | gG fuse 10 A maximum, GB2CB... circuit breaker 10 A maximum |
|---|---|
| [Ue] Rated Operational Voltage | <= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 250 V DC, <= 250 V DC<= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 250 V DC, <= 250 V DC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.00415898, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.020053647, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 16 kg CO2 eq., 16.157 |
| Local Publishable Date | 2025-08-13 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | No |
| Product Kit Identifier | N |
| Device Short Name | GV7AE |
| Mounting Location | inside the circuit breaker |
| Product Or Component Type | auxiliary contact block |
| Returnability | No |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Provide to the auxiliary circuit the status of the circuit breaker (open/closed/tripped).& 10Use Rate = 100%, Reference Lifetime = 20 years, according to IEC 60947-2. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 39.42 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| [Ith] Conventional Free Air Thermal Current | 6 A IEC 60947-5-1 |
| Nbr. Of Units In Pkg. | 1 |
| Warranty (In Months) | 18 |
| Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] | 16.157 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 411.63 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 24.023 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 490.67 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 411.63 |
| Customs Code | 8536509065 |
| [Ie] Rated Operational Current | 6 A AC-12 Ue: <= 690 V IEC 60947-5-16 A AC-15 Ue: <= 48 V IEC 60947-5-15 A AC-15 Ue: 110...127 V IEC 60947-5-14 A AC-15 Ue: 230...240 V IEC 60947-5-13 A AC-15 Ue: 380...440 V IEC 60947-5-10.1 A AC-15 Ue: 660...690 V IEC 60947-5-12.5 A DC-12 Ue: <= 48 V IEC 60947-5-10.8 A DC-12 Ue: 110 V IEC 60947-5-10.3 A DC-12 Ue: 250 V IEC 60947-5-1, 1 A DC-14 Ue: <= 24 V IEC 60947-5-10.5 A DC-14 Ue: 48 V IEC 60947-5-1, 0.2 A DC-14 Ue: 110 V IEC 60947-5-1, 0.05 A DC-14 Ue: 250 V IEC 60947-5-1 |
|---|---|
| Connections - Terminals | screw clamps terminals 1 1.5-1.5 mm²flexible with cable end, screw clamps terminals 1 1.5-1.5 mm²flexible without cable end, screw clamps terminals 1 1.5-1.5 mm²rigid |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.039495529 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.1 kg CO2 eq., 0.125992941 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Use Carbon Footprint | 16.157 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Device Application | signalling |
| Mechanical Durability | 50000 cycles |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range | TeSys |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 16 kg CO2 eq. |
| Pep Code | ENVPEP2304021EN |
| Pep Verification Date | 2023-09-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; PL |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 56 |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947-1 |
| Package Weight(Lbs) | 24 g |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 16.135 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 2.1424 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 174 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 2.3246 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 79.044 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 79.044 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 16.3467011 |
| Eu Rohs Directive | Compliant |
| Pep Code | ENVPEP2304021EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Reach Free Shvc | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2304021EN |
| Reach Free Of Svhc | Yes |
| Pep Verification Date | 2023-09-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | auxiliary contact block |
|---|
ETIM
| ETIM 8 | EC000041 |
|---|
| ETIM 9 | EC000041 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
