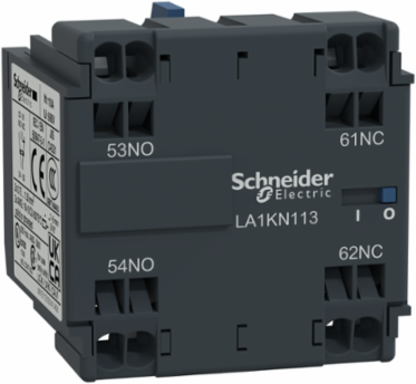

TeSys K Auxiliary Contact Block 1NO+1NC, 10A 690V AC, Spring Terminals
Schneider Electric

Schneider Electric LA1KN113 TeSys K Auxiliary Contact Block 1NO+1NC, 10A 690V AC, Spring Terminals

  • MPN: LA1KN113
  • PPN: SCH-LA1KN113

CAD

$18.37

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

LA1KN113 is a Schneider Electric instantaneous auxiliary contact block for TeSys K contactors. It provides 1NO+1NC contacts rated up to 10A 690V AC, connection by spring terminals. Easy clip-on mounting on front, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC). Multi standards certified (IEC, UL, CSA, CCC).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France
Depth35 mm

Complementary Attributes

Irms Rated Making Capacity
110 A at <= 690 V AC conforming to IEC 60947
Minimum Switching Voltage
17 V
Minimum Switching Current5 mA

Important Information Attributes

Persona Type Ids
EU, LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Range Of Product
TeSys K control relay, TeSys K
[Ui] Rated Insulation Voltage
690 V IEC 60947-5-1, 600 V UL 60947-5-1, 600 V CSA C22.2 No 60947-5-1
Permissible Short-time Rating
80 A 1 s, 60 A 500 ms, 110 A 100 ms
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.1 kg CO2 eq., 0.11352
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
0.9 kg CO2 eq., 0.92084
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Traceability
No
Use Carbon Footprint
3.1606
Weee Product Category
5
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
1926
China Rohs In Scope
No
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
1
Function Option
Standard
Associated Fuse Rating
10 A gG at <= 690 V conforming to IEC 60947
Device Short Name
LA1
Insulation Resistance
> 10 MOhm> 10 MOhm
Non Overlap Distance
0.5 mm
Product Availability
Non-Stock - Not normally stocked in distribution facility
Product Or Component Type
auxiliary contact block
Range
TeSys
Shielding Continuity Terminal
without
Sustainable Packaging
Yes
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections Terminals 55 Connections Terminals
spring terminals
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
To add instantaneous auxiliary contact blocks in front face on TeSys k contactors as NO and/or NC contacts for 20 years.
Functional-unit Unit
unit
Energy Model - Manufacturing [A1-a3]
Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]
Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential, In %
43
Width Nominal
38 mm
[Ue] Rated Operational Voltage
690 V AC 25...400 Hz
Package Weight(Lbs)
33.000 g
Warranty (In Months)
18
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
3.1606
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
606.91
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]
-1.6105
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
22.321
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
20.864
Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
81.925
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
-0.1974
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
663.02
Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
-1.6359
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
56.111
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
14.076
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]
3.4464
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
-0.0324
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
56.111
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyCB Scheme, CCC, UL, CSA, CE, UKCA
Connections - Terminalsspring terminals 1 0.75-1.5 mm²flexible without cable end, spring terminals 1 0.75-1.5 mm²rigid
Carbon Footprint Of The Distribution Phase [A4]0.0058845, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0043312, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]3 kg CO2 eq., 3.1606
Local Publishable Date2025-09-13
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeLA1
Environmental Characteristicnormal environment
Mounting Locationfront
Pole Contact Composition1 NO + 1 NC
Product NameTeSys K
Protective TreatmentTC IEC 60068
ReturnabilityNo
Software Versionv5.9.4
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Pole Contact Comp1 NO + 1 NC
Pep CodeENVPEP2106022EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal30 mm
[Ith] Conventional Free Air Thermal Current10 A (at 50 °C)
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]3.1524
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]15.02
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]3.4464
Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]269.98
Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]-1.993
Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]-1.1598
Materials For Recycling (Kg) Installation [A5]0.006
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]16.438
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]3.4467
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]1.4177
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.1974
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]606.91
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-1.4131
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1.3647
Water Use (M3 Eq) Benefits/Loads Beyond System Boundaries [D]-0.0434

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Ambient Air Temperature For Storage
-50-80 °C, -50-80 °C
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Carbon Footprint
4.205175700000001
Eu Rohs Directive
Compliant
Operating Altitude
6561.68 ft (2000 m)
Packaging Without Single Use Plastic
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2025-06-17
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-25-50 °C, -25-50 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2106022EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2106022EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Range Of Product
TeSys K control relay, TeSys K
Product Or Component Typeauxiliary contact block

ETIM

ETIM 8
EC000041
ETIM 9EC000041

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
