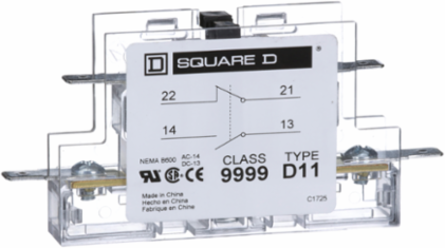

Square D 9999D11 Auxiliary Contact Module, 3A at 120 VAC, 1 NO + 1 NC for 20-90A DPA Contactors
- MPN: 9999D11
- UPC: 785901080886
- PPN: SCH-9999D11
CAD
$35.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Auxiliary contact module is for Series B versions of the 8910DPA definite purpose contactors, 8911DPS definite purpose starters or 8965 reversing hoist contactors. Contact module has one normally closed contact for 20A to 90A definite purpose contactors. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Contact modules are UL component recognized and CSA certified.
Features
- The 9999D11 is a high-performance 1 NO / 1 NC (Normally Open / Normally Closed) auxiliary contact module designed specifically for Square D NEMA Type S starters and contactors. This allows you to easily integrate remote status signaling or electrical interlocking without replacing your entire motor control center, streamlining your automation and monitoring capabilities.
- Designed for rapid field installation, the 9999D11 snaps onto the side of the power base with minimal tools required, reducing labor costs and system downtime. This modularity allows industrial engineers to scale their control logic on-the-fly, adapting to changing facility requirements without the need for complex wiring overhauls.
- Rated for AC and DC pilot duty, these contacts are built to manage the inductive loads typical of relay coils and signaling devices. The high-quality silver alloy contact points resist pitting and oxidation, ensuring thousands of reliable cycles even in high-vibration or continuous-duty manufacturing environments where signal integrity is non-negotiable.
- As an authentic Schneider Electric / Square D component, the 9999D11 is UL Listed and CSA Certified for use in North American industrial control panels. Utilizing genuine OEM parts ensures your equipment maintains its original safety rating and avoids the reliability risks or voided warranties associated with third-party "knock-off" components.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Mexico, United States
Complementary Attributes
- Rated Breaking Capacity
- 3 A 120 V AC inductive control circuit UL 5081.5 A 240 V AC inductive control circuit UL 5080.75 A 480 V AC inductive control circuit UL 5080.6 A 600 V AC inductive control circuit UL 508, 5 A <= 600 V AC resistive control circuit UL 508
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL Recognized, CSA
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2540
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Destination
- contactor
- Range Of Product
- DPA
- Sustainable Packaging
- Yes
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component TypeAuxiliary Contact Module
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Package Weight(Lbs)40.823 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- Auxiliary Contact Module
Range Of ProductDPA
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
