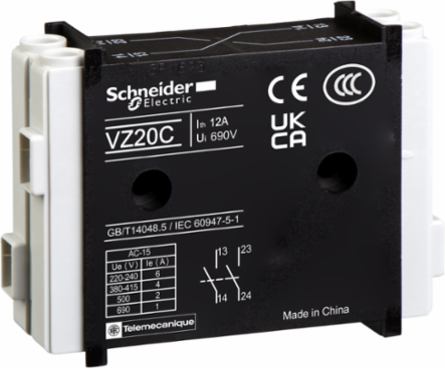

Schneider Electric VZ20 TeSys Auxiliary Contact Block 1 NO + 1 NO, 48.5 mm Depth, IP20 Rating
- MPN: VZ20
- PPN: SCH-VZ20
CAD
$32.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys Vario add-on module, auxiliary contact block, for TeSys Vario V02 to V6 switch bodies. It provides 2NO contacts (late make) rated for AC operation until 12A/690V and DC operation until 8A/250V. To be mounted on one side of the switch body. A maximum of 2 additional auxiliary contact block modules VZ7 or VZ20 can be attached to the switch body, one in each side. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Network Frequency
- 50/60 Hz
- Product Or Component Type
- auxiliary contact block
- Range
- TeSys
- Contacts Type And Composition
- 1 NO + 1 NO
- Device Short Name
- VZ
Network TypeDC || AC
Performance Levelhigh performance
Mounting Locationleft || right
Product CompatibilityV3 || V01 || V2 || V0 || V6 || V4 || V1 || V5 || V02
Complementary
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- [Ith] Conventional Free Air Thermal Current
- 12 A
- Net Weight
- 0.05 kg
- Connections - Terminals
- screw clamp terminals 2 0.75-1.5 mm² flexible - with cable end || screw clamp terminals 2 1-2.5 mm² solid
- Mechanical Durability
- 100000 cycles
- Tightening Torque
- 0.7-0.7 N.m screw clamp terminals
Height65 mm
[Ithe] Conventional Enclosed Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage8 kV
Electrical Durability30000 cycles DC-11 || 100000 cycles AC-15
Width20 mm
Depth48.5 mm
Environment
- Product Certifications
- GL || UL || CSA || UKCA
- Standards
- IEC 60947-5
- Protective Treatment
- TC
Ambient Air Temperature For Operation-20-50 °C
Ip Degree Of ProtectionIP20 IEC 60529
Fire Resistance960 °C IEC 60695-2-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211001
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
