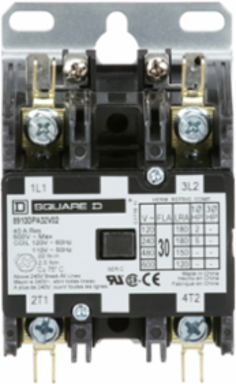

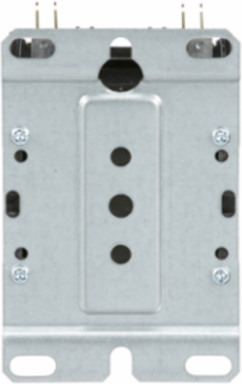

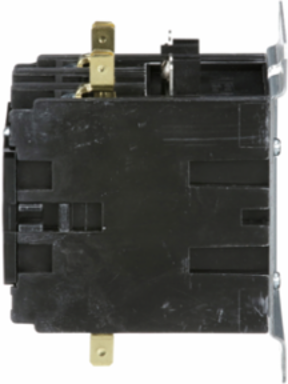

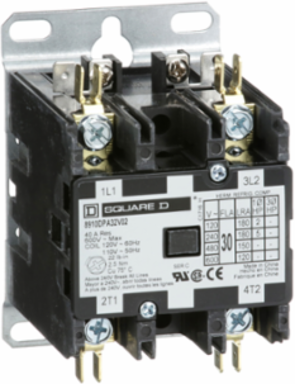

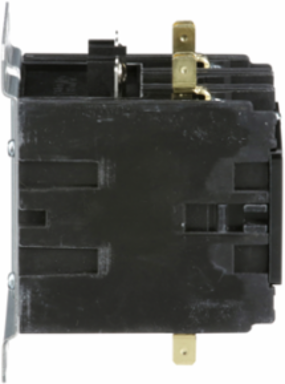

Square D 8910DPA32V02 Definite Purpose Contactor 30A 2 Pole 5HP 230VAC 1 Phase
- MPN: 8910DPA32V02
- UPC: 785901116967
- PPN: SCH-8910DPA32V02
CAD
$115.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

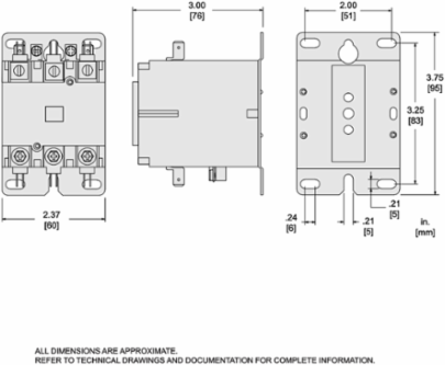

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
Features
- Specifically engineered for high-cycle applications, this 2-pole DPA contactor is the industry standard for controlling heating, air conditioning, and refrigeration motors. Its specialized design ensures a longer mechanical life under the heavy demands of compressor starts and fan motor switching, preventing the premature contact welding common in general-purpose relays.
- Featuring a dedicated 120V AC, 60Hz coil (V02 suffix), this unit integrates seamlessly with most commercial and residential HVAC control circuits. This eliminates the need for additional step-down transformers or complex wiring modifications, allowing for a fast, "plug-and-play" replacement that restores climate control systems to full operation with minimal downtime
- Rated for 30 Amps Inductive (FLA) and 40 Amps Resistive (RES), this heavy-duty contactor provides ample overhead for starting and running high-torque compressors and large blower motors. The robust silver-cadmium oxide contacts are designed to dissipate heat rapidly, ensuring consistent electrical conductivity and protecting your expensive HVAC equipment from voltage drops and overheating.
- The 8910DPA series features a compact, space-saving frame with industry-standard mounting holes, making it the ideal choice for retrofitting older, bulkier switches in tight control panels. Whether you are an industrial technician or a specialized HVAC contractor, the easy-access pressure wire connectors and binder head screws allow for rapid, secure terminations that withstand the vibration of heavy machinery.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.31 in
- Country of Origin
- China, France, Mexico, United States
Width2.37 in
Complementary Attributes
- Line Rated Current
- 30 A
- Maximum Horse Power Rating
- 2-2 hp 115 V AC, 1 phase5-5 hp 230 V AC, 1 phase
Locked Rotor Rated Current150 A 460 V AC120 A 575 V AC180 A 277 V AC
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- binder head, quick connect terminals
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Phase
- 1 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- DPA
- Sustainable Packaging
- Yes
- Height Nominal
- 2.31 in
- Width Nominal
- 2.37 in
- [Uc] Control Circuit Voltage
- 120 V AC 60 Hz110 V AC 50 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL Recognized, CSA
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2541
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN

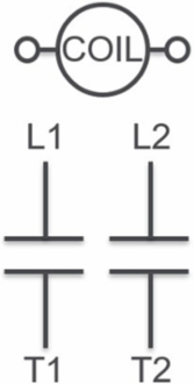

Number Of Poles2P
Pole Contact Composition2 NO
Product Or Component TypeDefinite Purpose Contactor
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Useful2.31 in
Width Real2.37 in
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)444.521 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 1 phase
- Range Of Product
- DPA
Product Or Component TypeDefinite Purpose Contactor
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
