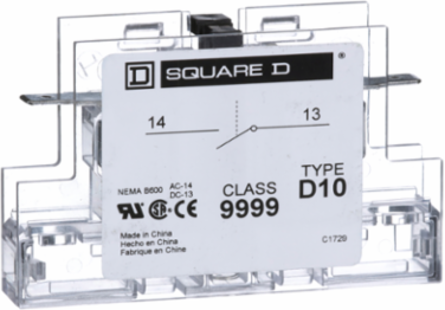

Square D 9999D10 Auxiliary Contact Module, 3A at 120 VAC, 1 NO for 20A to 90A DPA Contactors
- MPN: 9999D10
- UPC: 785901080862
- PPN: SCH-9999D10
CAD
$35.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Auxiliary contact module is for Series B versions of the 8910DPA definite purpose contactors, 8911DPS definite purpose starters or 8965 reversing hoist contactors. Contact module has one normally open contact for 50 to 90 A definite purpose contactors. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Contact modules are UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Mexico, United States
Complementary Attributes
- Rated Breaking Capacity
- 3 A 120 V AC inductive control circuit UL 508, 1.5 A 240 V AC inductive control circuit UL 508, 0.75 A 480 V AC inductive control circuit UL 508, 0.6 A 600 V AC inductive control circuit UL 508, 5 A <= 600 V AC resistive control circuit UL 508
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CSA, UL Recognized
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- Auxiliary Contact Module
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Package Weight(Lbs)
- 31.751 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2540
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Product Destinationcontactor
Range Of ProductDPA
Sustainable PackagingYes
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- Auxiliary Contact Module
Range Of ProductDPA
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
