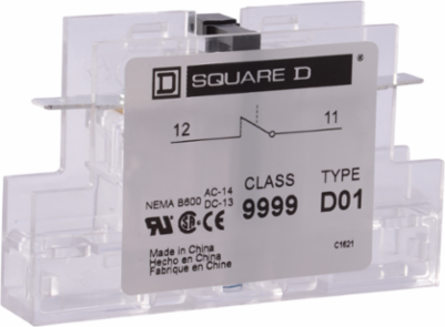

Square D 9999D01 Auxiliary Contact Module for DPA Contactors, 3A at 120 VAC, 1 NC Contact
- MPN: 9999D01
- UPC: 785901080879
- PPN: SCH-9999D01
CAD
$35.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Auxiliary contact module is for Series B versions of the 8910DPA definite purpose contactors, 8911DPS definite purpose starters or 8965 reversing hoist contactors. Contact module has one normally closed contact for 50 to 90 A definite purpose contactors. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Contact modules are UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- DPA
- Product Destination
- contactor
Product Or Component TypeAuxiliary Contact Module
Complementary
- Auxiliary Contact Composition
- 1 NC
Rated Breaking Capacity3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 0.75 A 480 V AC inductive control circuit UL 508 || 0.6 A 600 V AC inductive control circuit UL 508 || 5 A <= 600 V AC resistive control circuit UL 508
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA || UL recognized
