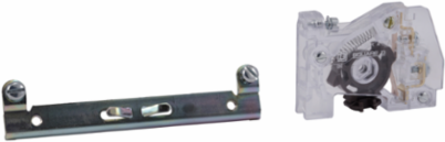

Square D 9999SX13 Type S Auxiliary Contact Module, 1 NO Contact, Rated 600V AC

MPN: 9999SX13
UPC: 785901721307
PPN: SCH-9999SX13

$200.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This external nonconvertible contact can be used as part of an electrical interlock system. This auxiliary contact has one normally open contact. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 3.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

Complementary Attributes

Rated Breaking Capacity	6 A 120 V AC inductive control circuit UL 5083 A 240 V AC inductive control circuit UL 5081.2 A 600 V AC inductive control circuit UL 5081.5 A 480 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Product Destination	contactor, starter
[Ue] Rated Operational Voltage	<= 600 V AC 50/60 Hz, <= 600 V AC 50/60 Hz, <= 600 V AC 50/60 Hz<= 600 V AC 50/60 Hz, <= 600 V AC 50/60 Hz, <= 600 V AC 50/60 Hz
Local Publishable Date	2025-11-18
Stocking Flag	Y
Serviceability	No
Field Service Division	PPIBS
Weee Product Category	5
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	type S
Sustainable Packaging	No
Package Weight(Lbs)	77.111 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	UL Listed, CSA, UL Recognized
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Traceability	No
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2540
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Energy Efficiency Optimized	False
Product Or Component Type	Auxiliary Contact Module
Returnability	No
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536509040

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes

Nema Size	1, 6, 7, 5, 0, 3, 2, 00, 4
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
