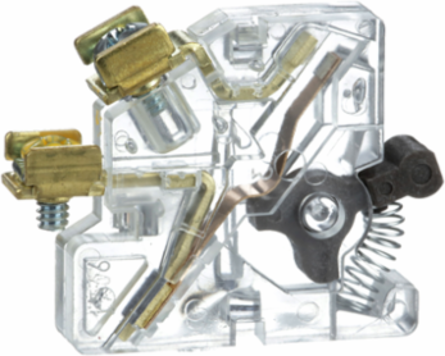

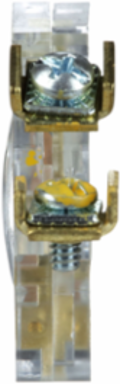

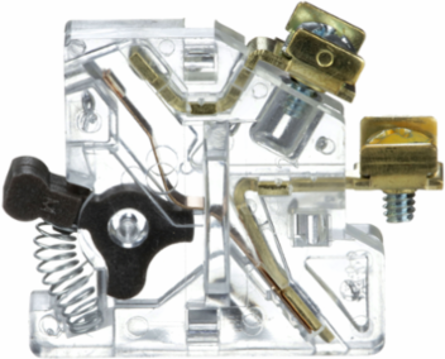

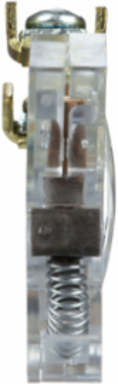

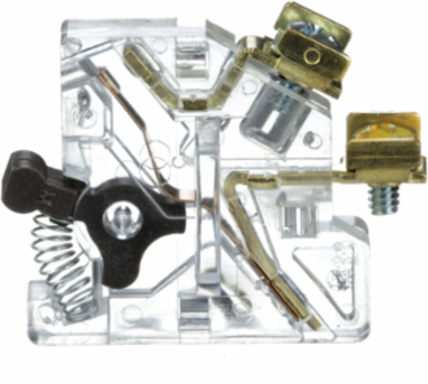

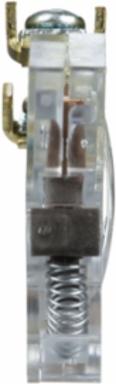

Square D 9999SX11 Type S Auxiliary Contact Module, 1 NO, NEMA 0 Size, 600 VAC Rated
- MPN: 9999SX11
- UPC: 785901879725
- PPN: SCH-9999SX11
CAD
$200.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This internal nonconvertible contact is normally used as a holding circuit contact in three wire control. This auxiliary contact has one normally open contact. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 3.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.
Features
- The 9999SX11 is a Class 9999 Type SX11 auxiliary contact module designed specifically for Schneider Electric (Square D) NEMA Type S magnetic starters and contactors. This "add-on" component allows you to expand your motor control logic—such as triggering pilot lights, remote alarms, or interlocking with other equipment—without replacing your entire primary controller.
- Featuring high-quality silver-cadmium oxide contacts, this module provides superior conductivity and resistance to welding. It ensures a crisp, reliable electrical signal every time the main contactor closes, preventing false "fault" readings in your control logic and reducing troubleshooting time in automated systems.
- Built to match the rugged specs of the Square D Type S ecosystem, this auxiliary contact is engineered for millions of mechanical operations. It maintains consistent performance in harsh environments where vibration and frequent cycling are common, protecting your facility from the downtime associated with cheap, generic components.
- This auxiliary contact is rated for heavy-duty pilot duty, supporting standard industrial voltages up to 600V AC. This flexibility allows it to be used across a wide variety of control schemes—from simple 120V hard-wired circuits to sophisticated 24V DC digital inputs—simplifying your spare parts inventory.
- The 9999SX11 is a UL Listed and CSA Certified component, ensuring that your modified motor control center (MCC) remains code-compliant. Using genuine Schneider Electric accessories preserves the safety rating of your starter assembly, mitigating liability risks and ensuring long-term operational safety.
Documentation & Downloads
Specifications
Additional
- Rated Breaking Capacity
- 3 A 120 V AC inductive, 1.5 A 240 V AC inductive, 0.75 A 480 V AC inductive, 0.6 A 600 V AC inductive, 5 A <= 600 V AC resistive (UL 508)
- NEMA Size
- 00
- Product Or Component Type
- Auxiliary Contact Module
- Product Destination
- contactor, starter
- Reach Regulation
- SVHC above threshold
- EU RoHS Directive
- Not compliant
Rated Operational Voltage<= 600 V AC 50/60 Hz
Auxiliary Contact Composition1 NO
Range Of Producttype S
Product CertificationsUL listed, CSA, UL recognized
China RoHS RegulationOut of China RoHS scope
Country of OriginMexico
