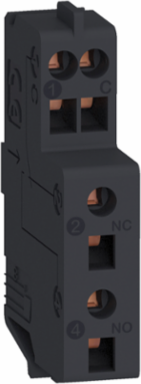

Schneider Electric GV4AE11 TeSys GV4 Auxiliary Contact Block, 690V, 5A, 1 NO/NC
- MPN: GV4AE11
- PPN: SCH-GV4AE11
CAD
$107.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GV4 auxiliary contact block, for motor circuit breakers GV4. 1C/O contact, it performs Open/Close OF function or Trip alarm SD function, depending of its location in the circuit breaker. Rated for operation up to 5A/690V AC and 5A/250V DC. To be plugged inside the circuit breaker, in the right-hand cavity for OF function, in the left-hand cavity for SD function, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Auxiliary Contact Composition
- 1 NO/NC
- Range Compatibility
- TeSys TeSys GV4 || TeSys TeSys BV4
- Product Or Component Type
- auxiliary contact
- Mounting Mode
- internal mounting
- Device Short Name
- GV4AE
[Ue] Rated Operational Voltage<= 690 V
[Ith] Conventional Free Air Thermal Current5 A IEC 60947-5-1 || 5 A CSA C22.2 No 14 || 5 A UL 508
RangeTeSys
Device Applicationsignalling
Complementary
- Rated Power In W
- DC-12 120 W 24 V IEC 60947-5-1 || DC-12 120 W 48 V IEC 60947-5-1 || DC-12 66 W 110 V IEC 60947-5-1 || DC-12 75 W 250 V IEC 60947-5-1
- Rated Power In Va
- 120 VA AC-12 24 V IEC 60947-5-1 || 240 VA AC-12 48 V IEC 60947-5-1 || 635 VA AC-12 110/127 V IEC 60947-5-1 || 1200 VA AC-12 230/240 V IEC 60947-5-1 || 2200 VA AC-12 380/440 V IEC 60947-5-1 || 3450 VA AC-12 660/690 V IEC 60947-5-1
- Connections - Terminals
- spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-1
- Minimum Switching Voltage
- 17 V
Minimum Switching Current2 mA
Associated Fuse Rating5 A gG at 690 V conforming to IEC 60947-5-1
Wire Stripping Length8 mm
[Ie] Rated Operational Current5 A <= 690 V AC-12 IEC 60947-5-1 || 0.3 A 250 V DC-12 IEC 60947-5-1 || 2.5 A <= 24 V DC-12 IEC 60947-5-1 || 1.2 A 48 V DC-12 IEC 60947-5-1 || 0.35 A 110/127 V DC-12 IEC 60947-5-1 || 0.05 A 250 V DC-12 IEC 60947-5-1 || 1 A <= 24 V DC-12 IEC 60947-5-1 || 0.2 A 48 V DC-12 IEC 60947-5-1 || 0.05 A 110/127 V DC-12 IEC 60947-5-1 || 0.03 A 250 V DC-12 IEC 60947-5-1 || 5 A <= 48 V AC-15 IEC 60947-5-1 || 4 A 110/127 V AC-15 IEC 60947-5-1 || 3 A 220/240 V AC-15 IEC 60947-5-1 || 2.5 A 380...440 V AC-15 IEC 60947-5-1 || 0.11 A 660/690 V AC-15 IEC 60947-5-1 || 5 A <= 24 V DC-12 IEC 60947-5-1 || 2.5 A 48 V DC-12 IEC 60947-5-1 || 0.6 A 110/127 V DC-12 IEC 60947-5-1
Mechanical Durability40000 cycles
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1704004EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1704004EN
Environment
- Quantity Per Set
- set of 1
