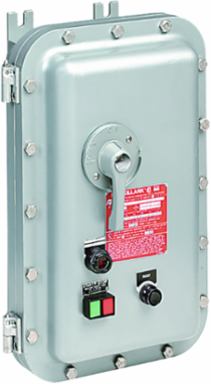

Killark B7023 Combination Motor Starter NEMA Size 3, Aluminum Enclosure, 50 hp, 600 V
- MPN: B7023
- UPC: 783936020068
- PPN: HBL-B7023
- UNSPSC: 39121521
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
B7 Series - Combination Motor Starter- NEMA Size 3
Features
- Type 4, 4X rated – providing protection from hose directed water and corrosion.
- Universal mounting pan, pre-drilled to facilitate easy field installation of starters.
- Provision for grounding supplied as standard.
- More wiring room meets latest NEC wire bend requirements.
- Quick release, captivated, 316 grade stainless steel cover bolts.
- Flange sealing gasket located to the inside of cover bolt to prevent water seepage into enclosure through bolt holes.
- Hinged cover provided as standard for an extra measure of safety and convenience.
- Breaker (MCP) handle can be padlocked in “ON” or “OFF” position.
- Provisions provided for drain and breather plus conduit openings for power and control.
- Reset button provided as standard.
- Two control operator openings provided plugged as standard.
- Additional openings can be factory or field drilled.
- Copper-free (less than 4/10 of 1% copper) enclosure.
- Bolt on bi-directional ductile mounting lugs.
- NEMA 4, 4X rated - providing protection from hose directed water and corrosion. Universal mounting pan, pre-drilled to facilitate easy field installation of starters. Provision for grounding supplied as standard. More wiring room - meets latest NEC wire b
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Size
- 3
- Special Features
- NEMA 4, 4X rated - providing protection from hose directed water and corrosion. Universal mounting pan, pre-drilled to facilitate easy field installation of starters. Provision for grounding supplied as standard. More wiring room - meets latest NEC wire b
- Voltage Rating
- 600 V
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- ENCL, COMBO STARTER SZ3 CLI
- Harmonization Code
- 8538100000
- Lead Time
- 20 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D253
- Gross Weight with Packaging
- 143
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936020068
- NAICS Code
- 3353146109
Width18.000 in
Horsepower - Maximum50
ApplicationThe PRISM B7 Series of across-the-line starter and combination motor control centers utilize SSNR single-speed, non-reversing NEMA type starters. PRISM enclosures universal design accomodates, as standard, the magnetic starters made by the following manuf
TypeAluminum Enclosure For Magnetic Motor Starter
Nema Rating3, 4, 4X
Class CodeD25
Freight Class Code06316011
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE83696
SeriesB7 Series
BOX SIZE(in)
Master Pack DescriptionEach
