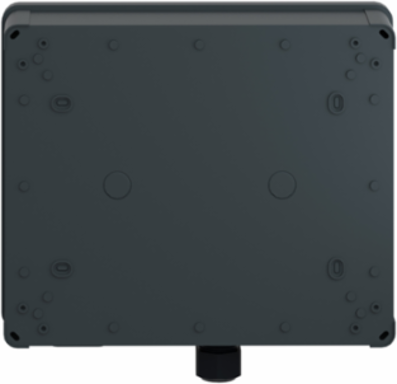

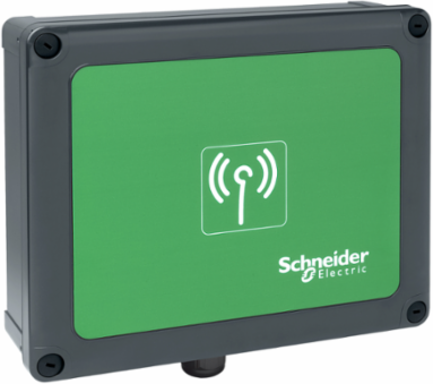

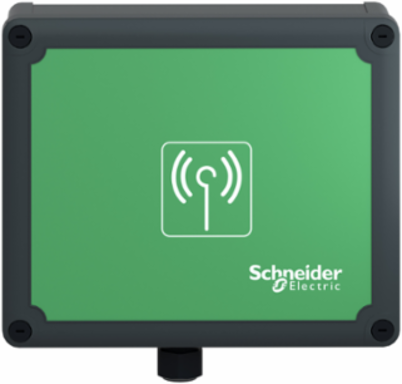

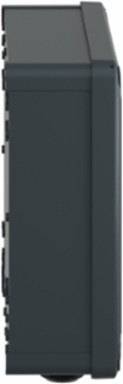

Schneider Electric ZARB18W Harmony eXLhoist Base Station, 18 Relay Outputs, IP65, 24-240V AC/DC
- MPN: ZARB18W
- PPN: SCH-ZARB18W
CAD
$1883.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony eXLhoist / XAR black base station (receiver) has 18 relays outputs with 2 safety relays. This black base station (receiver) is designed as receiver for wireless remote control system. It is compatible with the remote control device ZART8D. It has 16 relay outputs with 2 safety relays and has wired connection cable gland. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Base station (receiver) has a unique identification code to allow the consistent and stable connection with its compatible remote control system.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Depth100 mm
Communications & Management Attributes
- Communication Network Type
- wireless bluetooth low energy
Number Of Alarms6 programmable alarms
Complementary Attributes
- Maximum Sensing Distance
- 100 m in free field
- Maximum Switching Voltage
- 240 V AC/DC + 20 %)
Maximum Switching Current6.8 mA
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electromagnetic Compatibility
- resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3
- Radio Agreement
- SRRC, FCC, ANATEL, ICASA, RSS, ARIB
- Certificate Agency
- CSA, CE, UL, KC, C-tick, EAC
- Local Publishable Date
- 2026-02-17
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1404028EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1415
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Advanced
- Cable Entry
- cable gland
- Electrical Durability
- 100000 cycles
- Material
- PC (polycarbonate)
- Number Of Channels
- 40
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Provided Equipment
- internal antenna
- Returnability
- Yes
- Shock Resistance
- 15 gn 11 ms
- Switching Capacity In Va
- 5 VA DC26 VA AC
- Vibration Resistance
- 0.075 mm 10-55 Hz)
- Pep Code
- ENVPEP1404028EN
- Width Nominal
- 280 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109170
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Product Specific Applicationmaterial handling, hoisting applications
Relay Typemotion relay outputs 9 NOauxiliary relay outputs 7 NO, auxiliary relay outputs 2 NC + 2 NO
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdADVANCED
Product Kit IdentifierN
Device Short NameZARB
Fixing Mode4 holes
Mechanical Durability1000000 cycles
Number Of Relays18
Product Or Component Typebase station
Range Of ProductHarmony eXLhoist
Service Life10 year(s)
Sustainable PackagingNo
Transmission Frequency2.4 GHz
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal305 mm
[Us] Rated Supply Voltage24...240 V AC/DC
Package Weight(Lbs)1.7 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1404028EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 4
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-97 %
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1404028EN
Ip Degree Of ProtectionIP65
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1404028EN
General Attributes
- Product Or Component Type
- base station
- Range Of Product
- Harmony eXLhoist
Provided Equipmentinternal antenna
ETIM
- ETIM 8
- EC002024
ETIM 9EC002024
Output Attributes
- Nominal Output Current
- 0.54 A 48 V AC IEC 60947-5-1
Safety Outputs2 NC relay outputs
Input Attributes
- Number Of Inputs
- 12
