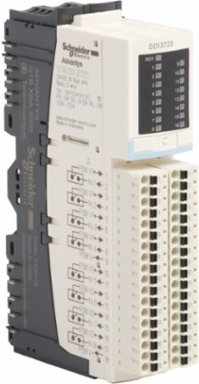

Schneider Electric STBDDI3725KC Modicon STB Digital Input Kit, 24V DC, 16 Inputs, IP20

MPN: STBDDI3725KC
PPN: SCH-STBDDI3725KC
UNSPSC: 32151601

$481.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete input kit has 16 discrete inputs with positive logic. It is a discrete input kit with a rated supply voltage of 24V DC and a current consumption of 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 28.1mm (Length) x 65.1mm (width) x 125mm (depth) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2180, 18-terminal spring clamp connector, STBDDI3725 module and STBXBA3000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Features

Adaptable to network
Simple, open and flexible
Save time, money by simplifying maintenance, diagnostic task
Basic NIMs hot swapping
Power protection integrated fuse on PDM time lag 5A
Input protection resistor limited
Reverse polarity protection
Positive discrete input logic
IP20 degree of protection
Wide range of operating temperature from -25°C to 70°C

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Mexico
Depth	65.1 mm

Weight	188 g

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Current State 1 Guaranteed	>= 2.5 mA, >= 2.5 mA, >= 2.5 mA, >= 2.5 mA
Vibration Resistance	+/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz)
Certificate Agency	FM Class 1 Division 2, UL, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.0560146, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	10 kg CO2 eq., 9.8037971429
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1511012EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1920
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Standard
Market Segmentation	Industrial
Bearing Track Assembly Possible	false
Electrical Connection	spring terminal
Hot Swapping Fallback	yes for basic NIMs
Marking	CE
Optical Interface Present	false
Product Availability	Stock - Normally stocked in distribution facility
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon STB distributed I/O solution
Shock Resistance	30 gn 11 msIEC 88 reference 2-27
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	No
Typical Current Consumption	100 mA 5 V DC for logic bus
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Digital Outputs Configurable	false
System Accessory	true
Short Circuit Protection Outputs Present	false
Database Version	2015-04
Height Nominal	125 mm
Silcl Acc. To En 62061	false
Supporting Protocol For Tcp/Ip	false
Nbr. Of Units In Pkg.	1
Appendant Operation Agent Ex Ia	false
Certified For Ul Hazardous Location Group A Acetylene	false
Certified For Ul Hazardous Location Group C Ethylene	false
Certified For Ul Hazardous Location Group E Metal Dusts	false
Certified For Ul Hazardous Location Group G Non Conductive Dust	false
Performance Level According To En Iso 13849 1	none
Supporting Protocol For As Interface Safety At Work	false
Warranty In Months	18
Reference Lifetime In Y	10

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Kit Composition	STBXTS2180, 18-terminal spring clamp connector, STBDDI3725 module, STBXBA3000 base
Voltage State 0 Guaranteed	-3...5 V at state 0, -3...5 V at state 0-3...5 V at state 0, -3...5 V at state 0
Carbon Footprint Of The Distribution Phase A4	0.0242560286, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.0078535657
Carbon Footprint Of The Use Phase B2 B3 B4 B6	23 kg CO2 eq., 23.274
Local Publishable Date	2025-08-11
Device Type	Automation - Distributed inputs/ouputs
Traceability	Yes
Use Carbon Footprint	23.274
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	4
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Current State 0 Guaranteed	<= 1.5 mA<= 1.5 mA
Front Installation Possible	false
Local Signalling	1 LED (green) for module status (RDY)1 LED per channel (green) for channel status (IN1 to IN2)
Network Type	DC
Power Supply Type	power distribution module
Product Or Component Type	basic digital input kit
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	Yes
Software Version	EIME v5.5
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Total Lifecycle Carbon Footprint	33 kg CO2 eq.
Voltage State 1 Guaranteed	at state 1 15...30 V
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Dc Supply Voltage	24-24 V
Fieldbus Connection Over Separate Bus Coupler Possible	true
Digital Inputs Configurable	false
Time Delay At Signal Change	2-2 ms
Data Source	extrapolated product
Width Nominal	28.1 mm
Supporting Protocol For Ethernet/Ip	false
Wall Mounting/Direct Mounting Possible	false
Customs Code	8538908180
Appendant Operation Agent Ex Ib	false
Certified For Ul Hazardous Location Group B Hydrogen	false
Certified For Ul Hazardous Location Group D Propane	false
Certified For Ul Hazardous Location Group F Carbonaceous Dust	false
Io Link Master Present	false
Rack Assembly Possible	false
Supporting Protocol For Data Highway	false
Functional Unit Description	To monitor and control industrial automation process during 10 years 100% of the time
Energy Consumption On Product Lifetime In Kwh	39.42

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C without derating), -25-70 °C without derating)-25-70 °C without derating), -25-70 °C without derating)
Product Compatibility	I/O base STBXBA3000, power distribution module STBPDT3100/3105
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1511012EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	<= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
Packaging Without Single Use Plastic	Yes
Relative Humidity	95-95 % 60-60 °C without condensation
Pep Verification Date	2015-11-01
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating
Take Back	No
China Rohs Regulation	X
Carbon Footprint	33.1659213371
Environmental Disclosure	ENVPEP1511012EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1511012EN
Pcr Version	PEP-PCR-ed3-EN-2015 04 02

General Attributes

Product Or Component Type	basic digital input kit

Range Of Product	Modicon STB distributed I/O solution

ETIM

ETIM 8	EC001599
ETIM 10	EC001599

ETIM 9	EC001599

Contractual Warranty Attributes

Warranty Period	18 months

Warranty	18 months

Input Attributes

Discrete Input Number	type 1 at 24 V DC, 16
Input Protection Type	input protection resistor-limited, reverse polarity protection
Response Time On Input	2 ms (off to on), 2 ms (on to off)
Discrete Input Logic	positive
Input Filtering	1 ms

Discrete Input Voltage	- 3...5 V, 11...30 Vtype 1, - 3...5 V
Input Voltage Limits	-3...5 V, 11...30 V, -3...5 V
Discrete Input Current	4.5 mA at 24 V DC
Discrete Input Voltage Type	DC
