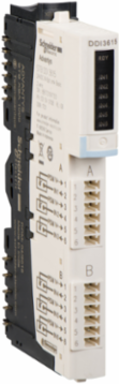

Schneider Electric STBDDI3425K Digital Input Kit, 4 Inputs, 24V DC, Height 18.4 mm, Width 125 mm
- MPN: STBDDI3425K
- PPN: SCH-STBDDI3425K
- UNSPSC: 32151601
CAD
$106.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric STBDDI3425K Digital Input Kit is an essential component for enhancing automation and control systems. Featuring four digital inputs with a 24V DC operating voltage, this module is designed to seamlessly integrate into a wide variety of PLC, HMI, and data acquisition applications. With a compact height of 18.4 mm and a width of 125 mm, it optimally fits within tight spaces, making it an efficient solution for simplifying connections in complex control architectures. This input kit not only ensures reliable performance but also facilitates precise monitoring and control, key to driving efficiency in industrial operations.
Features
- Easy to connect
- 4 inputs
- Power supply 24 V DC
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|
| Depth | 65.1 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Current State 1 Guaranteed | >= 2.5 mA, >= 2.5 mA, >= 2.5 mA, >= 2.5 mA |
| Vibration Resistance | +/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz) |
| Certificate Agency | UL, FM Class 1 Division 2, CSA |
| Local Publishable Date | 2026-01-12 |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | Yes |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Bearing Track Assembly Possible | false |
| Electrical Connection | screw terminal |
| Hot Swapping Fallback | yes for basic NIMs |
| Marking | CE |
| Optical Interface Present | false |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon STB distributed I/O solution |
| Shock Resistance | 30 gn 11 msIEC 88 reference 2-27 |
| Supporting Protocol For Can | true |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | true |
| Supporting Protocol For Profibus | true |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Typical Current Consumption | 45 mA 5 V DC for logic bus |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | true |
| Current Supplied By Sensor | 50 mA per channel |
| Short Circuit Protection Outputs Present | false |
| Supply Voltage Ac 60 Hz | 24-24 V |
| Height Nominal | 18.4 mm |
| Silcl Acc. To En 62061 | false |
| Supporting Protocol For Tcp/Ip | true |
| Nbr. Of Units In Pkg. | 1 |
| Appendant Operation Agent Ex Ia | false |
| Certified For Ul Hazardous Location Group A Acetylene | false |
| Certified For Ul Hazardous Location Group C Ethylene | false |
| Certified For Ul Hazardous Location Group E Metal Dusts | false |
| Certified For Ul Hazardous Location Group G Non Conductive Dust | false |
| Performance Level According To En Iso 13849 1 | none |
| Supporting Protocol For As Interface Safety At Work | false |
| Warranty In Months | 18 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Kit Composition | STBXBA1000 base, STBDDI3425 module, STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector |
| Voltage State 0 Guaranteed | -3...5 V at state 0, -3...5 V at state 0-3...5 V at state 0, -3...5 V at state 0 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Current State 0 Guaranteed | <= 1.2 mA<= 1.2 mA |
| Front Installation Possible | false |
| Local Signalling | 1 LED (green) for module status (RDY)1 LED per channel (green) for channel status (IN1 to IN2) |
| Network Type | AC/DC |
| Power Supply Type | power distribution module |
| Product Or Component Type | basic digital input kit |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Returnability | No |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | true |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | true |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Voltage State 1 Guaranteed | at state 1 11...30 V |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Digital Outputs Configurable | false |
| System Accessory | true |
| Digital Inputs Configurable | false |
| Supply Voltage Ac 50 Hz | 24-24 V |
| Time Delay At Signal Change | 0.925-1.35 ms |
| Width Nominal | 125 mm |
| Supporting Protocol For Ethernet/Ip | true |
| Wall Mounting/Direct Mounting Possible | false |
| Customs Code | 8538908180 |
| Appendant Operation Agent Ex Ib | false |
| Certified For Ul Hazardous Location Group B Hydrogen | false |
| Certified For Ul Hazardous Location Group D Propane | false |
| Certified For Ul Hazardous Location Group F Carbonaceous Dust | false |
| Io Link Master Present | false |
| Rack Assembly Possible | false |
| Supporting Protocol For Data Highway | false |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | 0-60 °C without derating) |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Product Compatibility | I/O base STBXBA1000, power distribution module STBPDT3100/3105 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
General Attributes
| Product Or Component Type | basic digital input kit |
|---|
| Range Of Product | Modicon STB distributed I/O solution |
|---|
ETIM
| ETIM 8 | EC001599 |
|---|---|
| ETIM 10 | EC001599 |
| ETIM 9 | EC001599 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Number | type 1 at 24 V DC, 4 |
|---|---|
| Input Protection Type | input protection resistor-limited, reverse polarity protection |
| Discrete Input Current | 8 mA at 24 V DC |
| Discrete Input Voltage Type | DC |
| Response Time On Input | 3.5 ms (off to on)3.8 ms (on to off) |
| Discrete Input Voltage | - 3...5 V, 11...30 Vtype 1, - 3...5 V |
|---|---|
| Input Voltage Limits | -3...5 V, 11...30 V, -3...5 V |
| Discrete Input Logic | positive |
| Input Filtering | 3 ms |
