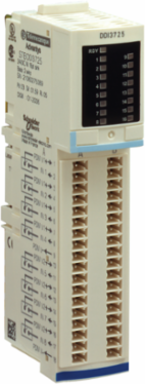

Schneider Electric STBDDI3725 Modicon STB Digital Input Module 24V DC, 16 Inputs, IP20
- MPN: STBDDI3725
- PPN: SCH-STBDDI3725
CAD
$301.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric STBDDI3725 Modicon STB Digital Input Module is an essential component for modern automation and control systems. Designed to provide reliable and efficient operation, this module supports 16 digital inputs at 24V DC, making it ideal for various industrial applications. With an IP20 rating, it is built to withstand the rigors of factory environments while ensuring secure and accurate data acquisition. This module enhances the capabilities of PLCs and HMIs, allowing for seamless integration into your automation projects and fostering improved operational performance.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, United States
Depth65.1 mm
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current State 1 Guaranteed
- >= 2.5 mA, >= 2.5 mA, >= 2.5 mA, >= 2.5 mA
- Voltage State 0 Guaranteed
- -3...5 V at state 0, -3...5 V at state 0-3...5 V at state 0, -3...5 V at state 0
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 4
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Current State 0 Guaranteed
- <= 1.5 mA<= 1.5 mA
- Front Installation Possible
- false
- Local Signalling
- 1 LED (green) for module status (RDY)1 LED per channel (green) for channel status (IN1 to IN2)
- Network Type
- AC/DC
- Power Supply Type
- power distribution module
- Product Or Component Type
- basic digital input module
- Radio Standard Gprs
- false
- Radio Standard Umts
- false
- Returnability
- No
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- No
- Voltage State 1 Guaranteed
- at state 1 15...30 V
- Certified For Ul Hazardous Location Class Ii
- false
- Certified For Ul Hazardous Location Division 1
- false
- Dc Supply Voltage
- 24-24 V
- Fieldbus Connection Over Separate Bus Coupler Possible
- true
- Digital Inputs Configurable
- false
- Time Delay At Signal Change
- 2-2 ms
- Width Nominal
- 125 mm
- Appendant Operation Agent (Ex Ib)
- false
- Certified For Ul Hazardous Location Group B (Hydrogen)
- false
- Certified For Ul Hazardous Location Group D (Propane))
- false
- Certified For Ul Hazardous Location Group F (Carbonaceous Dust)
- false
- Io-link Master Present
- false
- Rack-assembly Possible
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 100.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Vibration Resistance+/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/- 3.5 mm 10-58 Hz), +/- 3.5 mm 10-58 Hz)
Certificate AgencyFM Class 1 Division 2, CSA, UL
Local Publishable Date2025-07-09
Stocking FlagY
Device TypeAutomation - Distributed inputs/ouputs
TraceabilityYes
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1920
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Market SegmentationIndustrial
Bearing Track Assembly Possiblefalse
Electrical Connectionscrew terminal
Hot Swapping Fallbackyes for basic NIMs
MarkingCE
Optical Interface Presentfalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Radio Standard Bluetoothfalse
Radio Standard Gsmfalse
Range Of ProductModicon STB distributed I/O solution
Shock Resistance30 gn 11 msIEC 88 reference 2-27
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbustrue
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Typical Current Consumption100 mA 5 V DC for logic bus
Certified For Ul Hazardous Location Class Ifalse
Certified For Ul Hazardous Location Class Iiifalse
Certified For Ul Hazardous Location Division 2false
Digital Outputs Configurablefalse
System Accessorytrue
Short Circuit Protection Outputs Presentfalse
Height Nominal18.4 mm
Appendant Operation Agent (Ex Ia)false
Certified For Ul Hazardous Location Group A (Acetylene)false
Certified For Ul Hazardous Location Group C (Ethylene))false
Certified For Ul Hazardous Location Group E (Metal Dusts)false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)false
Performance Level According To En Iso 13849-1none
Silcl Acc. To En 62061false
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C without derating), -25-70 °C without derating)-25-70 °C without derating), -25-70 °C without derating)
- Product Compatibility
- I/O base STBXBA3000, power distribution module STBPDT3100/3105
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating
Take BackNo
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude<= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % 60-60 °C without condensation
