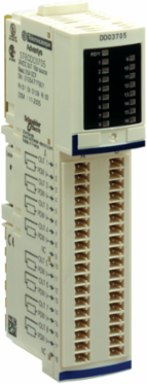

Schneider Electric STBDDO3705 Digital Output Module, 24V DC, 16 Outputs, IP20, Solid State
- MPN: STBDDO3705
- PPN: SCH-STBDDO3705
CAD
$353.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This output module is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This basic digital output module offers 16 outputs with positive discrete output logic. It offers discrete output voltage of 24V DC with solid state discrete output. There is an insulation between channels and logic bus at 1500V for 1 minute. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN/IEC 61131-2 standard. It is compatible with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, Mexico, United States
Depth70 mm
Complementary Attributes
- Absolute Maximum Voltage
- 56 V 1.3 ms
Maximum Leakage Current0.4 mA 30 V DC at state 0
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Vibration Resistance
- +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 x 7.5 mm symmetrical DIN rail5 gn 58-150 Hz) on 35 x 15 mm symmetrical DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 4
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Electrical Connection
- screw terminal
- Hot Swapping Fallback
- no for basic NIMs
- Local Signalling
- 1 LED (green) for module status (RDY)1 LED per channel (green) for channel status (OUT1 to OUT16)
- Network Type
- DC
- Overvoltage Category
- II
- Product Availability
- Stock - Normally stocked in distribution facility
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon STB distributed I/O solution
- Returnability
- Yes
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- No
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Fieldbus Connection Over Separate Bus Coupler Possible
- true
- Width Nominal
- 128.3 mm
- Appendant Operation Agent (Ex Ib)
- false
- Certified For Ul Hazardous Location Group B (Hydrogen)
- false
- Certified For Ul Hazardous Location Group D (Propane))
- false
- Certified For Ul Hazardous Location Group F (Carbonaceous Dust)
- false
- Io-link Master Present
- false
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 100 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Certificate AgencyUL, CSA, FM Class 1 Division 2
Local Publishable Date2025-07-09
Stocking FlagN
Device TypeAutomation - Distributed inputs/ouputs
TraceabilityYes
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1920
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionStandard
Market SegmentationIndustrial
Device ApplicationIndustrial Application
Front Installation Possiblefalse
Isolation Between Channels And Bus1500 V for 1 minute
MarkingCE
Optical Interface Presentfalse
Power Supply Typepower distribution module
Product Or Component Typebasic digital output module
Radio Standard Gprsfalse
Radio Standard Umtsfalse
Resetmanual reset COM fault
Shock Resistance30 gn 11 msIEC 88 reference 2-27
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Typical Current Consumption135 mA 5 V DC
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Digital Outputs Configurablefalse
Height Nominal13.9 mm
Appendant Operation Agent (Ex Ia)false
Certified For Ul Hazardous Location Group A (Acetylene)false
Certified For Ul Hazardous Location Group C (Ethylene))false
Certified For Ul Hazardous Location Group E (Metal Dusts)false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)false
Rack-assembly Possibletrue
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating
- Take Back
- No
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- 0-60 °C without derating)
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Product Compatibilitypower distribution module STBPDT3100/3105, I/O base STBXBA3000
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude<= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % 60-60 °C without condensation
General Attributes
- Product Or Component Type
- basic digital output module
Range Of ProductModicon STB distributed I/O solution
ETIM
- ETIM 8
- EC001599
ETIM 9EC001599
Output Attributes
- Discrete Output Number
- solid state at 24 V DC, 16
- Response Time On Output
- 2 ms off to on, 2 ms on to off
- Discrete Output Logic
- positive logic (source)
- Discrete Output Voltage
- 24 V DCsolid state
- Output Voltage
- 19.2...30 V DC
Output Protection Typepower protection integrated fuse on PDM time lag 5 A, reverse polarity protection, short-circuit protection, thermal overload protection
Discrete Output Current500 mA
Discrete Output Typesolid state
Discrete Output Voltage TypeDC
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
