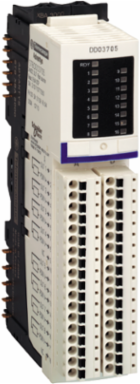

Schneider Electric STBDDO3705KC ectric STBDDO3705 Basic Digital Output Kit, 24V DC, 16 Outputs, IP20, 0.086kg

MPN: STBDDO3705KC
PPN: SCH-STBDDO3705KC
UNSPSC: 32151601

$550.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete output kit has 16 discrete outputs with solid state output. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 135mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA3000. The kit includes STBXBA3000 base, STBXTS2180, 18-terminal spring clamp connector and STBDDO3705 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Features

Adaptable to network
Simple, open and flexible
Save time, money by simplifying maintenance, diagnostic task
Power protection integrated fuse on PDM time lag 5A
Thermal overload protection
Reverse polarity and short circuit protection
Positive discrete output logic
IP20 degree of protection
Wide range of operating temperature from 0°C to 60°C

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Indonesia, Mexico, United States
Depth	70 mm

Weight	194 g

Complementary Attributes

Absolute Maximum Voltage	56 V 1.3 ms

Maximum Leakage Current	0.4 mA 30 V DC at state 0

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Kit Composition	STBXBA3000 base, STBXTS2180, 18-terminal spring clamp connector, STBDDO3705 module
Carbon Footprint Of The Distribution Phase A4	0.0250301571, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.0081042114
Carbon Footprint Of The Use Phase B2 B3 B4 B6	31 kg CO2 eq., 31.4199
Local Publishable Date	2024-02-10
Device Type	Automation - Distributed inputs/ouputs
Traceability	Yes
Use Carbon Footprint	31.4199
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	4
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Electrical Connection	screw terminal
Hot Swapping Fallback	no for basic NIMs
Network Type	DC
Product Availability	Stock - Normally stocked in distribution facility
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon STB distributed I/O solution
Shock Resistance	30 gn 11 msIEC 88 reference 2-27
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	No
Typical Current Consumption	135 mA 5 V DC
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Digital Outputs Configurable	false
Database Version	2015-04
Height Nominal	13.9 mm
Supporting Protocol For Ethernet/Ip	false
Wall Mounting/Direct Mounting Possible	false
Customs Code	8538908180
Appendant Operation Agent Ex Ib	false
Certified For Ul Hazardous Location Group B Hydrogen	false
Certified For Ul Hazardous Location Group D Propane	false
Certified For Ul Hazardous Location Group F Carbonaceous Dust	false
Io Link Master Present	false
Supporting Protocol For As Interface Safety At Work	false
Warranty In Months	18
Reference Lifetime In Y	10

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Certificate Agency	FM Class 1 Division 2, CSA, UL
Carbon Footprint Of The End Of Life Phase C1 To C4	0.0578023, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	10 kg CO2 eq., 10.1166842857
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1511012EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1920
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Standard
Market Segmentation	Industrial
Device Application	industrial application in severe environment
Front Installation Possible	false
Marking	CE
Optical Interface Present	false
Product Or Component Type	basic digital output kit
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	Yes
Software Version	EIME v5.5
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Total Lifecycle Carbon Footprint	42 kg CO2 eq.
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Fieldbus Connection Over Separate Bus Coupler Possible	true
Data Source	extrapolated product
Width Nominal	128.3 mm
Supporting Protocol For Tcp/Ip	false
Nbr. Of Units In Pkg.	1
Appendant Operation Agent Ex Ia	false
Certified For Ul Hazardous Location Group A Acetylene	false
Certified For Ul Hazardous Location Group C Ethylene	false
Certified For Ul Hazardous Location Group E Metal Dusts	false
Certified For Ul Hazardous Location Group G Non Conductive Dust	false
Rack Assembly Possible	true
Supporting Protocol For Data Highway	false
Functional Unit Description	To monitor and control industrial automation process during 10 years 100% of the time
Energy Consumption On Product Lifetime In Kwh	53.217

Environment Attributes Main

Product Compatibility	power distribution module STBPDT3100/3105, I/O base STBXBA3000
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1511012EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	<= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
Packaging Without Single Use Plastic	Yes
Relative Humidity	95-95 % 60-60 °C without condensation
Pep Verification Date	2015-11-01
Type Of Verification For The Pep	Independent internal review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	41.6275209543
Environmental Disclosure	ENVPEP1511012EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1511012EN
Pcr Version	PEP-PCR-ed3-EN-2015 04 02

General Attributes

Product Or Component Type	basic digital output kit

Range Of Product	Modicon STB distributed I/O solution

ETIM

ETIM 8	EC001599
ETIM 10	EC001599

ETIM 9	EC001599

Output Attributes

Discrete Output Number	solid state at 24 V DC, 16
Discrete Output Current	500 mA
Discrete Output Type	solid state
Discrete Output Voltage Type	DC

Response Time On Output	< 10 ms off to on, < 10 ms off to on, < 10 ms on to off, < 10 ms on to off< 10 ms off to on, < 10 ms off to on, < 10 ms on to off
Discrete Output Logic	positive
Discrete Output Voltage	24 V DCsolid state
Output Voltage	19.2...30 V DC
