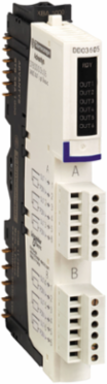

Schneider Electric STBDDO3605K Modicon STB Digital Output Kit, 24V DC, 6 Outputs, IP20
- MPN: STBDDO3605K
- PPN: SCH-STBDDO3605K
- UNSPSC: 32151601
CAD
$150.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric STBDDO3605K Modicon STB Digital Output Kit is engineered for robust automation and control applications, providing six reliable outputs operating at 24V DC. With an IP20 rating, this module ensures protection against solid objects, making it ideal for integration in various industrial environments. Designed for seamless compatibility with Schneider Electric's Modicon systems, it enhances the functionality of PLC, HMI, and data acquisition setups, offering a dependable solution for modern control systems.
Features
- Easy to connect
- 6 outputs
- Power supply 24 V DC
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|
| Depth | 70 mm |
|---|
Complementary Attributes
| Absolute Maximum Voltage | 56 V 1.3 ms |
|---|
| Maximum Leakage Current | 0.4 mA 30 V DC at state 0 |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Kit Composition | STBDDO3605 module, STBXTS2100, 6-terminal spring clamp connector, STBXBA1000 base, STBXTS1100, 6-terminal screw type connector |
| Certificate Agency | UL, CSA, FM Class 1 Division 2 |
| Local Publishable Date | 2026-01-12 |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | Yes |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Device Application | Industrial Application |
| Front Installation Possible | false |
| Isolation Between Channels And Bus | 1500 V for 1 minute |
| Marking | CE |
| Optical Interface Present | false |
| Power Supply Type | power distribution module |
| Product Or Component Type | basic digital output kit |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Reset | manual or automatic reset COM fault |
| Shock Resistance | 30 gn 11 msIEC 88 reference 2-27 |
| Supporting Protocol For Can | true |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | true |
| Supporting Protocol For Profibus | true |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Typical Current Consumption | 90 mA 5 V DC |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Digital Outputs Configurable | true |
| Height Nominal | 13.9 mm |
| Supporting Protocol For Ethernet/Ip | true |
| Wall Mounting/Direct Mounting Possible | false |
| Customs Code | 8538908180 |
| Appendant Operation Agent Ex Ib | false |
| Certified For Ul Hazardous Location Group B Hydrogen | false |
| Certified For Ul Hazardous Location Group D Propane | false |
| Certified For Ul Hazardous Location Group F Carbonaceous Dust | false |
| Io Link Master Present | false |
| Supporting Protocol For As Interface Safety At Work | false |
| Warranty In Months | 18 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Vibration Resistance | +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 x 7.5 mm symmetrical DIN rail5 gn 58-150 Hz) on 35 x 15 mm symmetrical DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz) |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Connection | screw terminal |
| Hot Swapping Fallback | no for basic NIMs |
| Local Signalling | 1 LED (green) for module status (RDY)1 LED per channel (green) for channel status (OUT1 to OUT6) |
| Network Type | AC/DC |
| Overvoltage Category | II |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon STB distributed I/O solution |
| Returnability | No |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | true |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | true |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | true |
| Width Nominal | 128.3 mm |
| Supporting Protocol For Tcp/Ip | true |
| Nbr. Of Units In Pkg. | 1 |
| Appendant Operation Agent Ex Ia | false |
| Certified For Ul Hazardous Location Group A Acetylene | false |
| Certified For Ul Hazardous Location Group C Ethylene | false |
| Certified For Ul Hazardous Location Group E Metal Dusts | false |
| Certified For Ul Hazardous Location Group G Non Conductive Dust | false |
| Rack Assembly Possible | true |
| Supporting Protocol For Data Highway | false |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | 0-60 °C without derating) |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Product Compatibility | I/O base STBXBA1000, power distribution module STBPDT3100/3105 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
General Attributes
| Product Or Component Type | basic digital output kit |
|---|
| Range Of Product | Modicon STB distributed I/O solution |
|---|
ETIM
| ETIM 8 | EC001599 |
|---|---|
| ETIM 10 | EC001599 |
| ETIM 9 | EC001599 |
|---|
Output Attributes
| Discrete Output Number | solid state at 24 V DC, 6 |
|---|---|
| Discrete Output Current | 250 mA |
| Discrete Output Type | solid state |
| Discrete Output Voltage Type | DC |
| Response Time On Output | 550 µs off to on900 µs on to off |
| Output Protection Type | power protection integrated fuse on PDM time lag 5 A, short-circuit protection, reverse polarity protection, thermal overload protection |
|---|---|
| Discrete Output Logic | positive logic (source) |
| Discrete Output Voltage | 24 V DCsolid state |
| Output Voltage | 19.2...30 V DC |
Surge Protection And Filtering Attributes
| Surge Current | 2.5 A 0.5 ms |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
