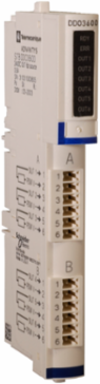

Schneider Electric STBDDO3600K lectric STBDDO3600 Standard Digital Output Kit, 24V DC, 6 Outputs, IP20 Rated
- MPN: STBDDO3600K
- PPN: SCH-STBDDO3600K
- UNSPSC: 32151601
CAD
$181.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard discrete output kit has 6 discrete outputs with solid state relay. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 90mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height) and weighs 0.114kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with power distribution module STBPDT3100/3105 and I/O base STBXBA1000. The kit includes STBXBA1000 base, STBDDO3600 module, STBXTS2100, 6-terminal spring clamp connector and STBXTS1100, 6-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Features
- Adaptable to network
- Simple, open and flexible
- Save time, money by simplifying maintenance, diagnostic task
- Standard NIMs hot swapping
- Power protection integrated fuse on PDM time lag 10A
- Thermal overload protection
- Reverse polarity and short circuit protection
- Positive or negative discrete output logic
- IP20 degree of protection
- Wide range of operating temperature from 0°C to 60°C
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia, Mexico, United States |
|---|---|
| Depth | 70 mm |
| Weight | 136 g |
|---|
Complementary Attributes
| Absolute Maximum Voltage | 56 V 1.3 ms |
|---|---|
| Minimum Load | 0.5 mA |
| Maximum Leakage Current | 0.4 mA 30 V DC at state 0 |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Kit Composition | STBXBA1000 base, STBDDO3600 module, STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector |
| Certificate Agency | CSA, UL, FM Class 1 Division 2 |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.0405212, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 7 kg CO2 eq., 7.0921085714 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1511012EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Device Application | Industrial Application |
| Fallback Status | state 0 basic NIMsuser configurable standard NIMs |
| Hot Swapping Fallback | yes for standard NIMs |
| Local Signalling | 1 LED (green) for module status (RDY)1 LED per channel (green) for channel status (OUT1 to OUT6) |
| Network Type | DC |
| Overvoltage Category | II |
| Product Availability | Stock - Normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon STB distributed I/O solution |
| Returnability | Yes |
| Software Version | EIME v5.5 |
| Supporting Protocol For Can | true |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | true |
| Supporting Protocol For Profibus | true |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Total Lifecycle Carbon Footprint | 28 kg CO2 eq. |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | true |
| Data Source | extrapolated product |
| Width Nominal | 128.3 mm |
| Supporting Protocol For Tcp/Ip | true |
| Nbr. Of Units In Pkg. | 1 |
| Appendant Operation Agent Ex Ia | false |
| Certified For Ul Hazardous Location Group A Acetylene | false |
| Certified For Ul Hazardous Location Group C Ethylene | false |
| Certified For Ul Hazardous Location Group E Metal Dusts | false |
| Certified For Ul Hazardous Location Group G Non Conductive Dust | false |
| Rack Assembly Possible | true |
| Supporting Protocol For Data Highway | false |
| Functional Unit Description | To monitor and control industrial automation process during 10 years 100% of the time |
| Energy Consumption On Product Lifetime In Kwh | 35.478 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Vibration Resistance | +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 x 7.5 mm symmetrical DIN rail5 gn 58-150 Hz) on 35 x 15 mm symmetrical DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz) |
| Carbon Footprint Of The Distribution Phase A4 | 0.0175469143, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.0056813029 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 21 kg CO2 eq., 20.9466 |
| Local Publishable Date | 2025-07-09 |
| Device Type | Automation - Distributed inputs/ouputs |
| Traceability | Yes |
| Use Carbon Footprint | 20.9466 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Connection | screw terminal |
| Front Installation Possible | false |
| Isolation Between Channels And Bus | 1500 V for 1 minute |
| Marking | CE |
| Optical Interface Present | false |
| Power Supply Type | power distribution module |
| Product Or Component Type | standard digital output kit |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Reset | manual reset COM fault |
| Shock Resistance | 30 gn 11 msIEC 88 reference 2-27 |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | true |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | true |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Typical Current Consumption | 90 mA 5 V DC |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Digital Outputs Configurable | true |
| Database Version | 2015-04 |
| Height Nominal | 13.9 mm |
| Supporting Protocol For Ethernet/Ip | true |
| Wall Mounting/Direct Mounting Possible | false |
| Customs Code | 8538908180 |
| Appendant Operation Agent Ex Ib | false |
| Certified For Ul Hazardous Location Group B Hydrogen | false |
| Certified For Ul Hazardous Location Group D Propane | false |
| Certified For Ul Hazardous Location Group F Carbonaceous Dust | false |
| Io Link Master Present | false |
| Supporting Protocol For As Interface Safety At Work | false |
| Warranty In Months | 18 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-85 °C without derating, -40-85 °C without derating-40-85 °C without derating, -40-85 °C without derating |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 28.1024579886 |
| Circularity Profile | ENVEOLI1511012EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 95-95 % 60-60 °C without condensation |
| Pep Verification Date | 2015-11-01 |
| Type Of Verification For The Pep | Independent internal review |
| Product Compatibility | power distribution module STBPDT3100/3105, I/O base STBXBA1000 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-60 °C without derating) |
| Environmental Disclosure | ENVPEP1511012EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1511012EN |
| Pcr Version | PEP-PCR-ed3-EN-2015 04 02 |
General Attributes
| Product Or Component Type | standard digital output kit |
|---|
| Range Of Product | Modicon STB distributed I/O solution |
|---|
ETIM
| ETIM 8 | EC001599 |
|---|---|
| ETIM 10 | EC001599 |
| ETIM 9 | EC001599 |
|---|
Output Attributes
| Discrete Output Number | solid state at 24 V DC, 6 |
|---|---|
| Discrete Output Current | 500 mA |
| Discrete Output Type | solid state |
| Discrete Output Voltage Type | DC |
| Response Time On Output | 715 µs off to on955 µs on to off |
| Output Protection Type | power protection integrated fuse on PDM time lag 10 A, reverse polarity protection, short-circuit protection, thermal overload protection |
|---|---|
| Discrete Output Logic | positive logic (source)/negative logic (sink) |
| Discrete Output Voltage | 24 V DCsolid state |
| Output Voltage | 19.2...30 V DC |
Surge Protection And Filtering Attributes
| Surge Current | 5 A 0.5 ms |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
