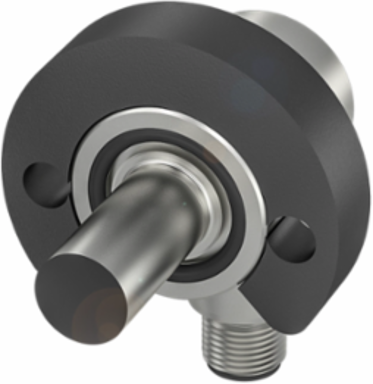

Balluff BES05Z1 BES 516-300-S358/1.025"-S4
- MPN: BES05Z1
- PPN: BAL-BES05Z1
CAD
$540.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
BES 516-300-S358/1.025"-S4
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10 to 30 V DC
- No-load Current Max Damped
- 35 mA
- Switching Frequency
- 30 Hz
- Pressure Rating
- 206 bar
- Rated Operating Distance
- 2 mm
- Real Switching Distance
- 2 mm
- Tolerance
- 10 %
- Dimension
- 12.7 mm x 1.025 in
- Housing Material
- Zinc, Aluminium
- IP Rating
- IP67
Rated Operating Current200 mA
No-load Current Max Undamped20 mA
Voltage Drop Static Max2 V
Operating Temperature Range-25 to 70 C
Assured Operating Distance1.6 mm
Hysteresis Max15 %
Switching OutputPNP/NPN normally open (NO)
InstallationFlush mounting
Material Sensing SurfaceDuroplast
Principle of OperationInductive sensor
