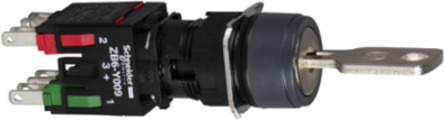

Schneider Electric XB6AGC5B Harmony XB6 16mm Key Selector Switch, 2 Positions, IP65 Protection
- MPN: XB6AGC5B
- PPN: SCH-XB6AGC5B
CAD
$78.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XB6, complete key selector switch is part of the range diameter 16mm plastic, Harmony XB6 monolithic. It has a a circular head shape, and is supplied with a Ronis key no. 200 operated knob. It features 2 positions maintained, at 70°. It features 1 NO + 1 NC slow break contacts and faston connection type. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It weighs 36g. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB6
- Type Of Operator
- stay put
- Shape Of Signaling Unit Head
- round
- Contacts Type And Composition
- 1 NO + 1 NC
- Bezel Material
- plastic
- Operator Profile
- key switch
- Operating Position
- any position
- Type Of Keylock
- key 200
Mounting Diameter16 mm
Product Or Component Typecomplete selector switch
Key Withdrawal Positionin any position
Sale Per Indivisible Quantity1
Contact Operationslow-break
Operator Position Information2 positions 70°
Device Short NameXB6
Complementary
- Terminals Description Iso N°1
- (13-14)NO || (21-22)NC
- Contacts Material
- silver alloy (Ag/Ni)
- Net Weight
- 0.036 kg
- Cad Overall Height
- 18 mm
- Connections - Terminals
- Faston connectors 2.8 x 0.5 mm
- [Ie] Rated Operational Current
- 3 A 120 V, AC-15, B300 IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
- Electrical Reliability
- λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
- Cad Overall Depth
- 80 mm
Short-Circuit Protection6 A cartridge fuse gG
Positive Openingwith IEC 60947-5-1 appendix K
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
Electrical Durability1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
Mechanical Durability200000 cycles
Cad Overall Width18 mm
Environment
- Product Certifications
- UL || CSA || GOST || CCC
- Standards
- IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C 852 || IEC 60947-5-1 || JIS C8201-1
- Vibration Resistance
- +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP65 IEC 60529
Electrical Shock Protection Classclass II IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
