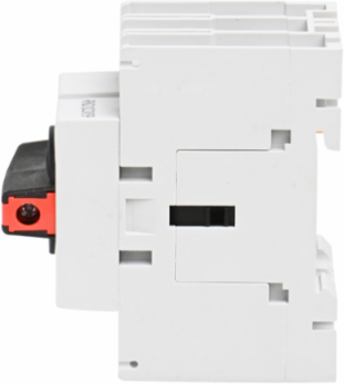

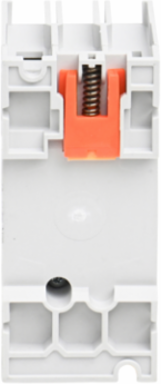

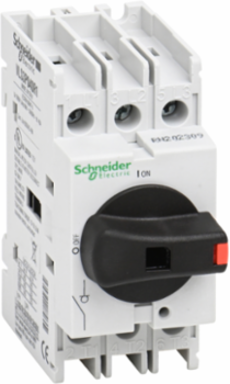

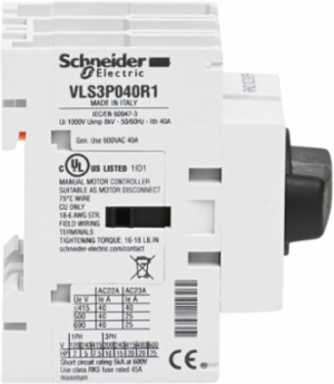

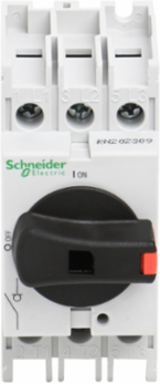

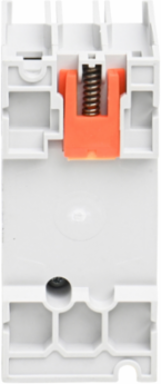

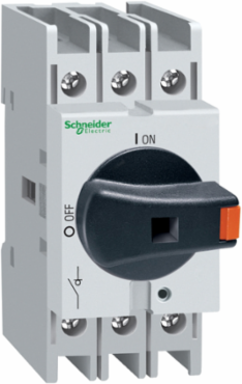

Schneider Electric VLS3P040R1 TeSys VLS Disconnect Switch 40A, 20HP, 3 Poles, DIN Rail Mount
- MPN: VLS3P040R1
- PPN: SCH-VLS3P040R1
CAD
$109.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 40A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 2 HP rating at 120 VAC and a 5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 10 HP rating at 200 to 208 VAC, a 15 HP rating at 240 VAC, a 20 HP rating at 480 VAC and a 25 HP rating at 600 VAC three phase. Per UL508A this this disconnect switch has up to a 5 kA at 600 V short circuit current rating (SCCR) with a 30A Type RK5 fuse maximum. Per IEC requirements, this disconnect switch has a 18.5 kW rating at 400 V, a 18.5 kW rating at 500 V and a 22 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept solid or stranded wire from 18 AWG to 6 AWG. This disconnect switch is 3.07 inches tall, 1.42 inches wide and 2.95 inches deep. The switch weighs 0.30 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is cULus Listed and meets IEC 60947-3 requirements.
Features
- Rated for a continuous 40 Amps up to 600V AC, this 3-pole non-fusible disconnect body delivers exceptional power scaling within a highly compact framework. It handles demanding motor loads up to 15 HP at 240V, 20 HP at 480V, and 25 HP at 600V AC, making it ideal for isolating heavy-duty HVAC compressors, industrial water pumps, and material handling conveyors without risking contact degradation.

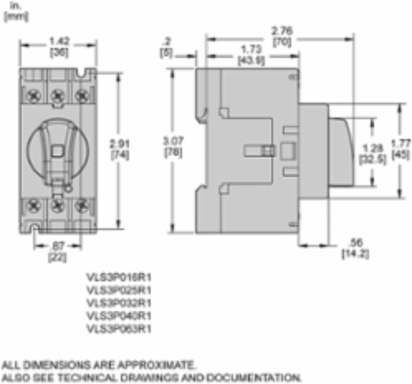

- Boasting an ultra-slim size 1 footprint that measures just 36mm (1.42 inches) wide, this switch-disconnector maximizes precious horizontal rail estate inside tightly packed automation boxes. The low-profile structure slides directly onto standard 35mm DIN rails, allowing panel building teams to squeeze high-amperage local isolation points into cramped enclosures where bulkier traditional switches fail to fit.
- The rugged power circuit screw-clamp terminals are engineered with an expansive landing pad that tightly secures solid or stranded wires ranging from 18 AWG down to 6 AWG. Torquing down to the factory specification of 15.93... 17.7 lbf-in (1.8... 2 N-m) creates a gas-tight compression joint that actively resists thermal expansion cycles and factory machine vibration, permanently eliminating hot spot faults and loose-wire maintenance callouts.
- Built as a highly adaptable base platform, the TeSys VLS housing features side-mount mechanical coupling interfaces that support rapid field modifications.
- Carrying full cULus listing to UL 508 / CSA C22.2 No 14 alongside complete IEC 60947-3 compliance, this device naturally adapts to both North American and European industrial design parameters. The IP20 finger-safe housing prevents accidental worker contact with live terminals, ensuring seamless site inspection approval for industrial plant managers and independent safety auditors alike.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy, United States
Depth78 mm
Physical Attributes
- Color
- Gray
- Handle Front Plate Color
- grey
Handle Colorblack
Complementary Attributes
- Rated Operational Power In W
- 18.5 kW 400 V AC-23A), 18.5 kW 500 V AC-23A)22 kW 690 V AC-23A)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- handle, switch
- Certificate Agency
- cULus, GL
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2541
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- VLS
- Control Type
- rotary handle
- Electrical Durability
- 100000 cycles AC-21A
- Fire Resistance
- 960 °C IEC 60695-2-11
- Intermittent Duty Class
- class 120 - 60 %
- Marking
- 0 - 1
- Mounting Support
- back DIN rail
- Network Type
- AC
- Performance Level
- high performance
- Product Name
- TeSys VARIO LS
- Range
- TeSys
- Rotary Handle Mounting Style
- direct
- Suitability For Isolation
- yes
- Tightening Torque
- power circuit 1.8-2 N.m screw clamp terminals
- Handle Color
- black
- Height Nominal
- 75 mm
- [Icm] Rated Short-circuit Making Capacity
- 1128 A 690 V
- [Ith] Conventional Free Air Thermal Current
- 40 A (at 55 °C)
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
[Ie] Rated Operational Current40 A AC-22A Ue: 500 V, 40 A AC-22A Ue: 690 V, 25 A AC-23A Ue: 690 V40 A Ue: 600 V UL 50840 A AC-21A Ue: 400 V, 40 A AC-21A Ue: 500 V, 40 A AC-21A Ue: 690 V, 40 A AC-22A Ue: 400 V, 40 A AC-23A Ue: 400 V, 25 A AC-23A Ue: 500 V
Connections - Terminalspower circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 16-16 mm² flexible - without cable end
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV switch - disconnector
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition3 NO
Device Short NameVLS3P
Energy Efficiency OptimizedFalse
Fixing Modeby clips back
Making Capacity60 A 690 V AC-21A120 A 690 V AC-22A400 A 690 V AC-23A
Mechanical Durability100000 cycles
Network Frequency50/60 Hz
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeswitch body
ReturnabilityYes
Rotary Handle Padlocking1 padlock 4-4 mm
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Colorgrey
Width Nominal36 mm
[Icw] Rated Short-time Withstand Current800 A 690 V 1 s
[Ithe] Conventional Enclosed Thermal Current40 A
Rated Conditional Short-circuit Current50 kA 400 V 40 A gG
Package Weight(Lbs)171.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- switch body
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
