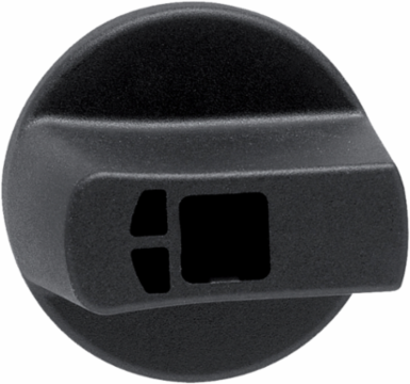

Schneider Electric VLSHA7 TeSys VLS Disconnect Switch Adapter for 7mm Shaft, 1-1/2 Inch Tall

TeSys VLS Disconnect Switch Adapter for 7mm Shaft, 1-1/2 Inch Tall
  • MPN: VLSHA7
  • PPN: SCH-VLSHA7

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$30.52/ EA

    Description

    These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This adaptor is used when rear mounting a VLSH3S7RD or VLSH3S7BD handle. This black adaptor handle is for use with a VLS3P032R2, VLS3P063R2, VLS3P080R2, VLS3P100R2 or VLS3P125R2 DIN rail mount disconnect switch. Must purchase VLSS1507N, VLSS3007N or VLSS5007N 7 mm shaft extension separately. Rotary handle is 1.28 inches tall, 1.28 inches wide and 1.31 inches deep. The handle weighs 0.02 lbs. Adaptor handle is cULus Listed and meets IEC 60947-3 requirements.

    Specifications

    Specifications

    Rotary Handle Padlocking
    without
    Handle Colour
    black
    Device Short Name
    VLSH
    Range CompatibilityTeSys TeSys VARIO LS VLS3P
    Product Or Component Typerotary handle
    RangeTeSys

    Offer Sustainability

    China Rohs Regulation
    Pro-active China RoHS declaration (out of China RoHS legal scope)
    Mercury Free
    Yes
    Eu Rohs Directive
    Compliant
    Reach Free Of Svhc
    Yes
    Rohs Exemption InformationYes
    Toxic Heavy Metal FreeYes
    Reach RegulationFree of Substances of Very High Concern above the threshold

    Complementary

    Height
    32.4 mm
    Width
    32.5 mm
    Net Weight
    0.01 kg
    Tightening Torque0.8 N.m
    Depth33.3 mm
