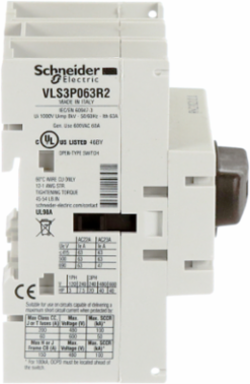

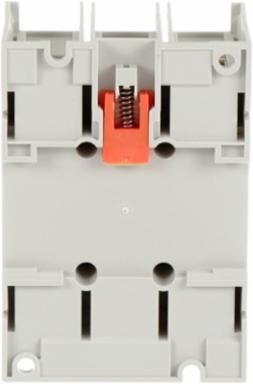

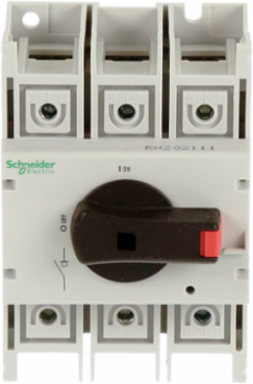

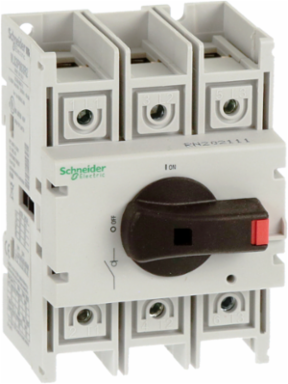

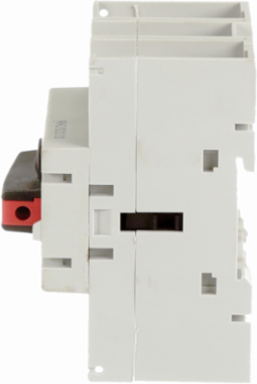

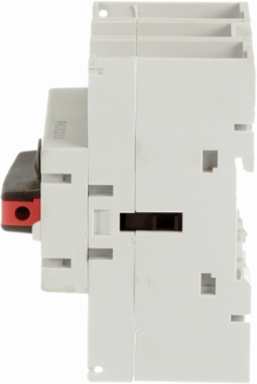

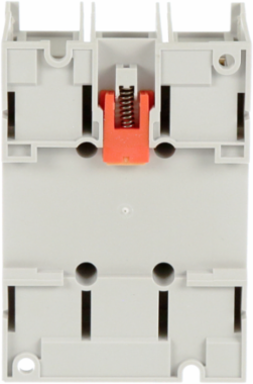

Schneider Electric VLS3P063R2 TeSys VLS Disconnect Switch 60A 3P DIN Rail Mount 40HP 50kA SCCR
- MPN: VLS3P063R2
- PPN: SCH-VLS3P063R2
CAD
$249.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This disconnect switch is rated 60A per UL. It has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 3 HP rating at 120 VAC and a 7.5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 20HP rating at 200 to 208 VAC and 240 VAC, a 40 HP rating at 480 VAC and a 40 HP rating at 600 VAC three phase. This disconnect switch has up to a 100 kA at 480 V short circuit current rating (SCCR) with a 200A Type J fuse maximum. Per IEC requirements, this disconnect switch has a 30 kW rating at 400 V, a 45 kW rating at 500 V and a 45 kW rating at 690V three phase. The screw clamps will accept from 12 AWG to 1 AWG wire. The screw clamp terminals will also accept 4 mm to 70 mm wire. This disconnect switch is 3.94 inches tall, 2.75 inches wide and 2.95 inches deep. The switch weighs 0.80 lbs. There are many accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL98, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.
Features
- Rated for 60 Amps under strict UL98 guidelines (63 Amps per IEC) at up to 600V AC, this Size 2 non-fusible body switch safely manages heavy inductive three-phase motor profiles up to 40 HP at both 480V and 600V AC. For industrial plant maintenance engineers, this structural capacity guarantees stable, heavy-duty load shedding for deep-well water pumps, heavy conveyor belts, and massive HVAC packaging stations without overheating the main internal contact block.
- Unlike standard UL508 motor-rated switches, this premium switch body is fully certified to the stringent UL98 and CSA C22.2 No. 4 safety criteria, designating it as a certified branch-circuit emergency main isolation device. This premium classification means the housing can be positioned on the line side of upstream overcurrent protection systems, streamlining compliance checks for complex industrial code panels and electrical service entrances.
- Boasting an exceptionally space-efficient layout, this Size 2 switch measures just 70mm (2.76 inches) wide, 75mm tall, and 100mm deep. The low-profile modular chassis clips securely onto a standard 35mm DIN rail or backplate, enabling automation panel assembly crews to squeeze heavy current isolation links into crowded electrical cabinets and compact marshalling enclosures.
- The heavy-duty screw-clamp terminal terminals are specifically designed with an wide landing profile that tightly anchors copper wires ranging from 12 AWG up to 1 AWG. Torquing down to the factory-certified specification of 44.2 to 53.1 lbf-in (5 to 6 N-m) establishes a solid, gas-tight mechanical clamp that resists machine vibrations and thermal movement, eliminating localized hot spots and joint failures.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Italy, United States
Depth100 mm
Physical Attributes
- Color
- Gray
- Handle Front Plate Color
- grey
Handle Colorblack
Complementary Attributes
- Rated Operational Power In W
- 30 kW 400 V AC-23A)45 kW 500 V AC-23A), 45 kW 690 V AC-23A)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- switch, handle
- Certificate Agency
- cULus, GL
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- 3 NO
- Device Short Name
- VLS3P
- Energy Efficiency Optimized
- False
- Fixing Mode
- by clips back
- Making Capacity
- 94.5 A 690 V AC-21A189 A 690 V AC-22A630 A 690 V AC-23A
- Mechanical Durability
- 30000 cycles
- Network Frequency
- 50/60 Hz
- Number Of Poles
- 3P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- switch body
- Returnability
- Yes
- Rotary Handle Padlocking
- 1 padlock 4-4 mm
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Handle Front Plate Color
- grey
- Width Nominal
- 70 mm
- [Icw] Rated Short-time Withstand Current
- 2500 A 690 V 1 s
- [Ithe] Conventional Enclosed Thermal Current
- 63 A
- Rated Conditional Short-circuit Current
- 50 kA 400 V 63 A gG
- Package Weight(Lbs)
- 409.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
[Ie] Rated Operational Current63 A AC-22A Ue: 500 V, 63 A AC-22A Ue: 690 V63 A AC-23A Ue: 500 V, 60 A Ue: 600 V UL98, 63 A AC-21A Ue: 400 V, 63 A AC-21A Ue: 500 V, 63 A AC-21A Ue: 690 V, 63 A AC-22A Ue: 400 V, 63 A AC-23A Ue: 400 V, 47 A AC-23A Ue: 690 V
Connections - Terminalspower circuit screw clamp terminals 50-50 mm² solid, power circuit screw clamp terminals 70-70 mm² flexible - without cable end
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV switch - disconnector
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2541
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeVLS
Control Typerotary handle
Electrical Durability30000 cycles AC-21
Fire Resistance960 °C IEC 60695-2-11
Intermittent Duty Classclass 120 - 60 %
Marking0 - 1
Mounting Supportback DIN rail
Network TypeAC
Performance Levelhigh performance
Product NameTeSys VARIO LS
RangeTeSys
Rotary Handle Mounting Styledirect
Suitability For Isolationyes
Tightening Torquepower circuit 5-6 N.m screw clamp terminals
Handle Colorblack
Height Nominal75 mm
[Icm] Rated Short-circuit Making Capacity3550 A 690 V
[Ith] Conventional Free Air Thermal Current63 A (at 55 °C)
[Uimp] Rated Impulse Withstand Voltage8 kV
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- switch body
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
