Schneider Electric ZB6DD23 Head for selector switch, Harmony XB6, black handle, rectangular, 16mm, 3 positions, stay put

Head for selector switch, Harmony XB6, black handle, rectangular, 16mm, 3 positions, stay put
  • MPN: ZB6DD23
  • PPN: SCH-ZB6DD23

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$22.42/ EA

Description

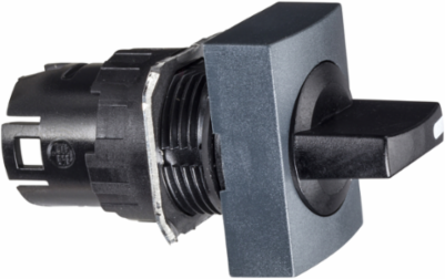

This Harmony ZB6DD23 is a black rectangular selector switch head, 3-position stay put. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Specifications

Environment

Product Certifications
GOST || UL || CCC || CSA
Ambient Air Temperature For Storage
-40-70 °C
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective Treatment
TC
Ambient Air Temperature For Operation-25-70 °C
StandardsEN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-5 || JIS C 852 || EN/IEC 60947-1 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
Electrical Shock Protection Classclass II IEC 61140
Vibration Resistance+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP65 IEC 60529

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1710010EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Complementary

Cad Overall Width
24 mm
Net Weight
0.018 kg
Cad Overall Depth43 mm
Cad Overall Height18 mm

Specifications

Sale Per Indivisible Quantity
1
Bezel Material
plastic
Operator Position Information
3 positions 60°
Type Of Operator
stay put
Shape Of Signaling Unit Head
rectangular
Range Of ProductHarmony XB6
Operator Profileblack standard handle
Mounting Diameter16 mm
Product Or Component Typehead for selector switch
Device Short NameZB6
