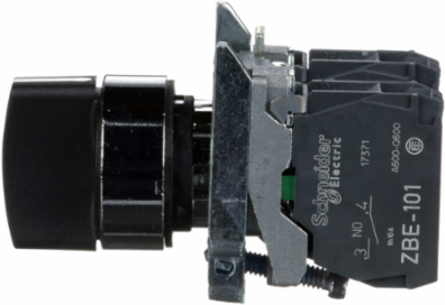

Schneider Electric XB4BD53 Harmony XB4 Selector Switch, 22mm, 3 Positions, Metal, IP66/IP67/IP69K

  • MPN: XB4BD53
  • PPN: SCH-XB4BD53
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $71.75

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

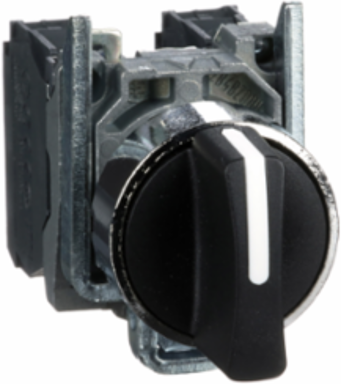

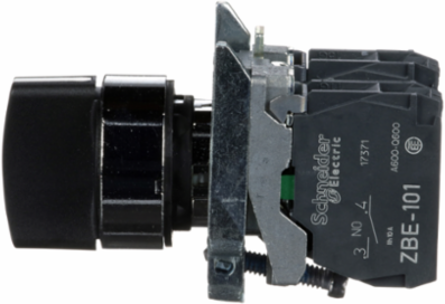

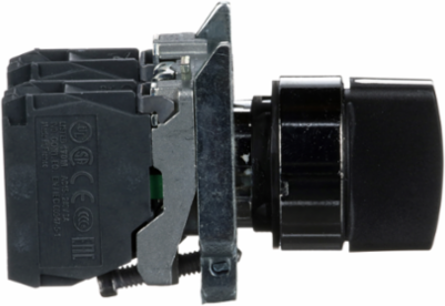

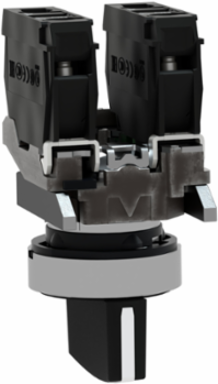

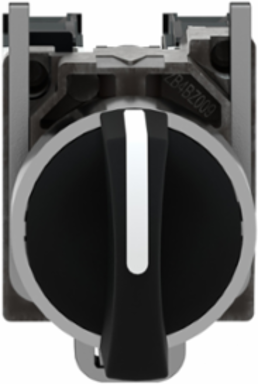

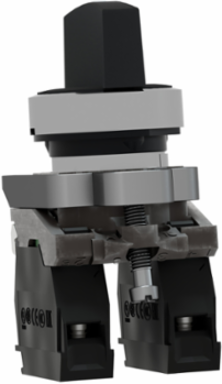

    Harmony XB4 Selector Switch, 22mm, 3 Positions, Metal, IP66/IP67/IP69K

    Features

    • Engineered with a reliable "stay-put" mechanical design, this 3-position selector switch firmly locks into the left, center, or right positions upon rotation. This fixed mechanical memory ensures that multi-stage process lines, manual/auto overrides, and speed selections remain safely in their designated operating modes until an operator intentionally changes them.
    • Featuring a rugged, chrome-plated metal bezel and fixing collar, this 22 mm heavy-duty device is built to survive accidental tool impacts, severe vibrations, and aggressive chemical cleanings. With robust NEMA 4X/13 and IP66/IP69K ratings, it forms a completely dust-tight and waterproof barrier that easily withstands high-pressure, hot-water washdowns in demanding food processing or automotive manufacturing plants.
    • Outfitted with two independent Normally Open (NO) Schneider electric contact blocks utilizing slow-break silver alloy contacts, this unit allows you to control two distinct circuits from a single interface point. Turning the knob left activates the first block, center leaves both open, and right closes the second block delivering clean, arc-free electrical switching for PLC inputs or control relay interlocks.
    • Utilizing Schneider s innovative Harmony XB4 click-fit mounting system, the operator body snaps onto the rear contact blocks with a single metal locking collar screw. This modular architecture allows industrial panel builders to perform rapid field replacements, add extra stacking contact blocks, or swap out front operator heads in seconds without disconnecting any underlying field wiring.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance, Mexico, United States
    Depth68 mm

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Customizableno, 0
    Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Operator Pos Information3 positions +/- 45°
    [Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Carbon Footprint Of The Distribution Phase [A4]0.0137307287, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0169799126
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.1 kg CO2 eq., 0.123886
    Local Publishable Date2026-03-26
    Stocking FlagY
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2308005EN
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content49 %
    Compatibility CodeXB4
    Contacts Materialsilver alloy (Ag/Ni)
    Contacts Usagestandard contacts
    Fixing Collar Materialzamak
    Mechanical Durability1000000 cycles
    Operator Position Information3 positions +/- 45°
    Positive Openingwithout
    Product Or Component Typeselector switch
    Protective TreatmentTH
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity1
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable PackagingNo
    Torque Value0.14 N.m NO changing electrical state
    Type Of Operatorto centre spring return
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Type Of Operator 3 Type Of Operatorspring return
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThis Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines.This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal47 mm
    [Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
    Cap/Operator Or Lens Colourblack
    Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)104.000 g
    Take-backNo
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2.6862
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]3.1836
    Customs Code8536509065
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
    Operator Profileblack, standard handle
    Contacts Composition2 NO
    Certificate AgencyBV, UL, CSA, DNV, LROS (Lloyds register of shipping)

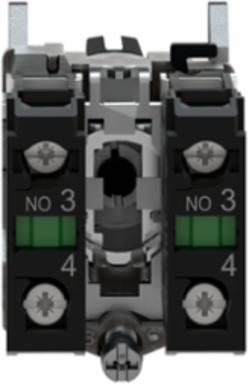

    Terminals Description Iso N°1(13-14)NO, (23-24)NO, (13-14)NO, (23-24)NO
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1205920755, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.7 kg CO2 eq., 0.6989278361
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee Product Category5
    Eoli Availability DisplayYes
    Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Percentage Of Recycled Metal Content19 %
    Bezel Materialchromium plated metal
    Contact Operationslow-break
    Contacts Type And Composition2 NO
    Device Short NameXB4
    Head Typestandard

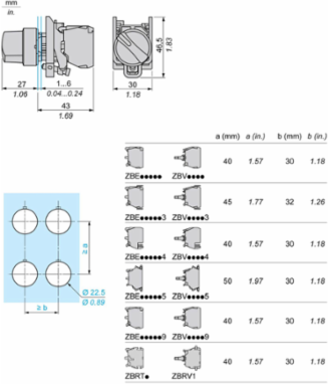

    Mounting Diameter22.5 mm
    Overvoltage Categoryclass I conforming to IEC 60536
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Repair IndexA
    Range Of ProductHarmony XB4
    ReturnabilityYes
    Shape Of Signaling Unit Headround
    Software Versionv5.9.4
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Total Lifecycle Carbon Footprint1 kg CO2 eq.
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Operator Profile 1 Operator Profilestandard handle
    Pep CodeENVPEP2308005EN
    Pep Verification Date2023-08-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Recyclability Potential In %84
    Width Nominal30 mm
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    [Us] Rated Supply Voltage600 V
    Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
    Nbr. Of Units In Pkg.1
    Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
    Warranty (In Months)18
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]2.6862
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2.6862

    Environment Attributes Main

    Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
    Ip Degree Of ProtectionIP69, IP69KIP67 IEC 60529
    Take BackNo
    Recycled Metal Content At Cr Level19 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.9741165529
    Environmental DisclosureENVPEP2308005EN
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Pep CodeENVPEP2308005EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2308005EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-08-01
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Typeselector switch
    Range Of ProductHarmony XB4

    ETIM

    ETIM 8EC001029
    ETIM 9EC001029

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Overview Attributes

    Device Presentationcomplete product
    Harmony XB4 Selector Switch, 22mm, 3 Positions, Metal, IP66/IP67/IP69K
    Harmony XB4 Selector Switch, 22mm, 3 Positions, Metal, IP66/IP67/IP69K
    Harmony XB4 Selector Switch, 22mm, 3 Positions, Metal, IP66/IP67/IP69K
    Harmony XB4 Selector Switch, 22mm, 3 Positions, Metal, IP66/IP67/IP69K
    Harmony XB4 Selector Switch, 22mm, 3 Positions, Metal, IP66/IP67/IP69K
    Harmony XB4 Selector Switch, 22mm, 3 Positions, Metal, IP66/IP67/IP69K
    Harmony XB4 Selector Switch, 22mm, 3 Positions, Metal, IP66/IP67/IP69K
    Harmony XB4 Selector Switch, 22mm, 3 Positions, Metal, IP66/IP67/IP69K
    Harmony XB4 Selector Switch, 22mm, 3 Positions, Metal, IP66/IP67/IP69K
    Harmony XB4 Selector Switch, 22mm, 3 Positions, Metal, IP66/IP67/IP69K
