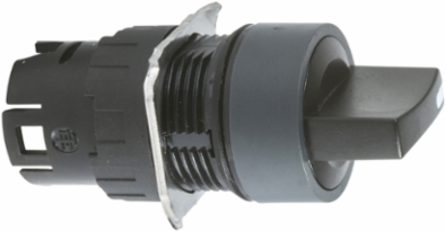

Schneider Electric ZB6AD22 Harmony XB6 Black Selector Switch Head, 16mm, 2 Positions, IP65

Harmony XB6 Black Selector Switch Head, 16mm, 2 Positions, IP65
  • MPN: ZB6AD22
  • PPN: SCH-ZB6AD22

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$22.42/ EA

    Description

    This Harmony ZB6AD22 is a black selector switch head, 2-position stay put. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

    Specifications

    Environment

    Product Certifications
    CSA || CCC || GOST || UL
    Standards
    IEC 60947-5-1 || IEC 60947-5-5 || UL 508 || JIS C 852 || JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
    Vibration Resistance
    +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
    Ambient Air Temperature For Storage
    -40-70 °C
    Electrical Shock Protection Class
    class II IEC 61140
    Ambient Air Temperature For Operation-25-70 °C
    Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Ip Degree Of ProtectionIP65 IEC 60529
    Nema Degree Of ProtectionNEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
    Protective TreatmentTC

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1710010EN
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    Circularity Profile
    ENVEOLI1710010EN
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationFree of Substances of Very High Concern above the threshold
    China Rohs RegulationX
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Complementary

    Net Weight
    0.018 kg
    Cad Overall Width
    18 mm
    Cad Overall Height18 mm
    Cad Overall Depth43 mm

    Specifications

    Range Of Product
    Harmony XB6
    Type Of Operator
    stay put
    Shape Of Signaling Unit Head
    round
    Bezel Material
    plastic
    Operator Position Information
    2 positions 60°
    Mounting Diameter16 mm
    Product Or Component Typehead for selector switch
    Sale Per Indivisible Quantity1
    Operator Profileblack standard handle
    Device Short NameZB6
