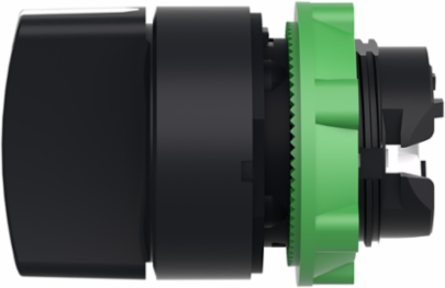

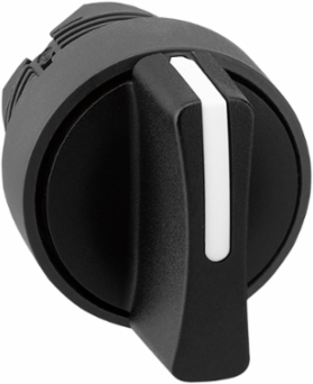

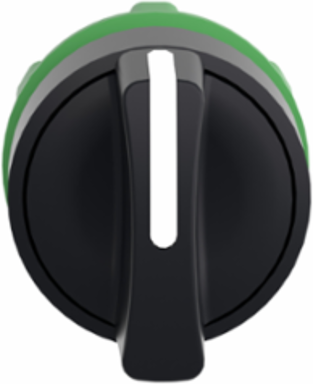

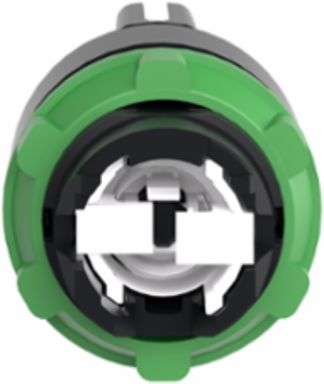

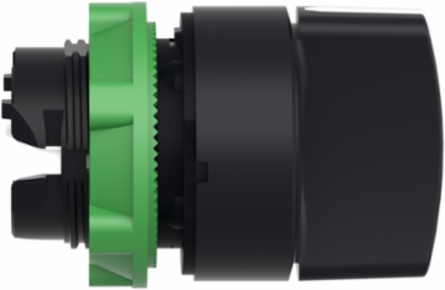

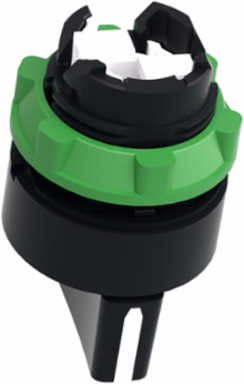

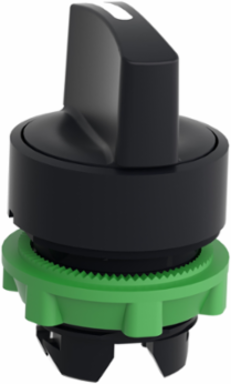

Schneider Electric ZB5AD5 Harmony XB5 Selector Switch Head, Plastic, Black, 22mm, 3 Positions, IP69K
- MPN: ZB5AD5
- PPN: SCH-ZB5AD5
CAD
$31.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB5, black selector switch head with standard handle has 3 positions, operates with spring return to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- The Schneider ZB5AD5 is a 22mm 3-position selector switch head from the Harmony XB5 plastic range. It features a standard black handle and is designed for manual circuit selection, allowing operators to switch between different machine modes such as "Hand-Off-Auto" with clear tactile feedback and visible position indication.
- This model features a Spring Return to Center from both the left and right positions. This "momentary" action is ideal for applications where you want to jog a motor or pulse a signal in either direction, ensuring the switch automatically returns to the neutral "Off" or "Center" position as soon as the operator releases the handle.
- As a "head-only" component, the ZB5AD5 is designed to be paired with a ZB5AZ009 mounting collar and ZBE contact blocks. This modularity allows you to customize the electrical logic choosing how many Normally Open (NO) or Normally Closed (NC) circuits are triggered in each position to meet your specific control panel requirements.
- Manufactured from high-strength double-insulated plastic, the ZB5AD5 is highly resistant to chemical cleaning agents, oils, and corrosion. It carries IP66, IP67, IP69, and IP69K ratings, making it capable of withstanding high-pressure, high-temperature steam cleaning, which is a standard requirement in Canadian food and beverage processing.
- The switch features a standard-length handle with a non-slip texture, providing a secure grip for operators even when wearing heavy industrial gloves. The robust internal mechanism is rated for 1,000,000 mechanical cycles, ensuring long-term reliability in high-traffic control stations and machine interfaces.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Mexico, United States
Physical Attributes

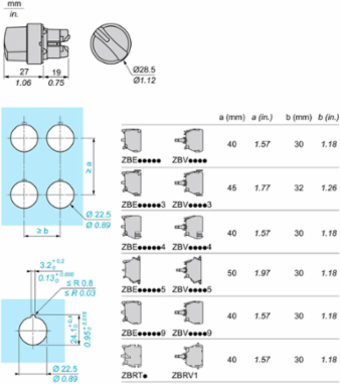

- Cad Overall Depth
- 46 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Range Of Product
- Harmony XALF, Harmony XB5
- Station Name
- XALD 1...5 cut-outs, XALK 2...5 cut-outs
- Operator Profile 1 Cap Operator Or Lens Color
- black
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0022230087, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0057890891, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Future Imap
- 14.52
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 28 %
- Compatibility Code
- ZB5
- Group Of Product
- non illuminated
- Main Group
- selector switch
- Mounting Diameter
- 22 mm
- Operator Profile
- black standard handle
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Type Of Operator
- to centre spring return
- Type Of Operator 3 Type Of Operator
- spring return
- Pep Code
- "ENVPEP2308008EN"
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Cap/Operator Or Lens Colour
- black
- Package Weight(Lbs)
- 24.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeC3 6 single front mounting, C4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Operator Pos Information3 positions +/- 45°
Certificate AgencyDNV, CSA, BV, LROS (Lloyds register of shipping), UL Listed
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0298632279
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.1157624926
Local Data StatusPublishable
Return IndicatorY
Future Msrp18.80
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308008EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content60 %
Bezel Materialdark grey plastic
Device Short NameZB5
Head Typestandard
Mechanical Durability1000000 cycles
Operator Position Information3 positions +/- 45°
Overvoltage Categoryclass II conforming to IEC 60536
Product Or Component Typehead for selector switch
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Type Of Operator 3 Returnto centre
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential, In %23
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP67 IEC 60529, IP69 IEC 60529, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 60 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.1536378183
- Environmental Disclosure
- "ENVPEP2308008EN"
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- "ENVPEP2308008EN"
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308008EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Range Of Product
- Harmony XALF, Harmony XB5
Product Or Component Typehead for selector switch
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
