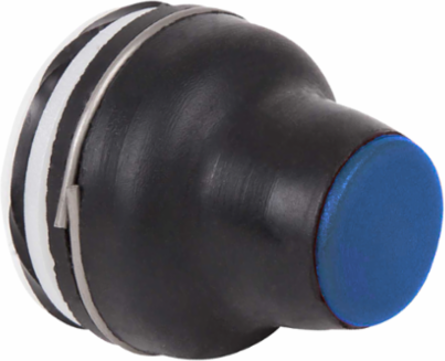

Schneider Electric XACB9116 Blue Booted Head for Pushbutton, 4 mm, IP65, -25 to +70 C
- MPN: XACB9116
- PPN: SCH-XACB9116
CAD
$11.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This blue booted head is designed by Schneider Electric for use with pushbuttons, providing an efficient and durable solution for various control applications. With an ingress protection rating of IP65, it ensures reliable performance in challenging environments, effectively resisting dust and water. Operating effectively in temperatures ranging from -25 to +70 C, this component is built to withstand a wide range of conditions, making it suitable for both indoor and outdoor use. Its robust construction enhances the longevity of your control systems, ensuring that operations remain smooth and efficient even in harsh settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- IEC 60947-5-1, CSA C22.2 No 14
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Component Name
- XACB
- Marking
- unmarked
- Operator Additional Information
- booted
- Product Or Component Type
- head for push-button
- Returnability
- No
- Shock Resistance
- 100 gn IEC 60068-2-27
- Vibration Resistance
- 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
- Cap/Operator Or Lens Colour
- blue
- Package Weight(Lbs)
- 12.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Electrical Shock Protection Classclass II conforming to IEC 61140
Operating Travel4 mm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony XAC
Sale Per Indivisible Quantity10
Sustainable PackagingNo
Pep CodeENVPEP0709005EN
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Product Compatibility
- XENB...., XESD2201, XESD2241, XESD2251, XEND...., XESB2011, XENC....
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP0709005EN
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Environmental DisclosureENVPEP0709005EN
Ip Degree Of ProtectionIP65 conforming to IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- head for push-button
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
