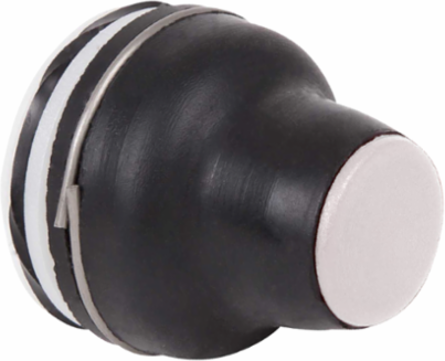

Schneider Electric XACB9121 Booted Head for Pushbutton - White, 4 mm Travel, -40 to +70 °C, IP65
- MPN: XACB9121
- PPN: SCH-XACB9121
CAD
$11.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XACB9121 is a booted head for push button white 4 mm travel, -40°C to +70 °C. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Documentation & Downloads
Specifications
Key Specifications
- Operator Additional Information
- booted
- Product Or Component Type
- head for push-button
- Cap/Operator Or Lens Colour
- white
- Sale Per Indivisible Quantity
- 10
- Product Compatibility
- XENB.... || XESD2251 || XESD2241 || XEND.... || XESB2011 || XENC.... || XESD2201
Range Of ProductHarmony XAC
Markingunmarked
Component NameXACB
Operating Travel4 mm
Complementary
- Net Weight
- 0.005 kg
Environment
- Ik Degree Of Protection
- IK08 conforming to IEC 62262
- Standards
- IEC 60947-5-1 || CSA C22.2 No 14
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-40-70 °C
Shock Resistance100 gn IEC 60068-2-27
Ip Degree Of ProtectionIP65 IEC 60529
Electrical Shock Protection Classclass II IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
