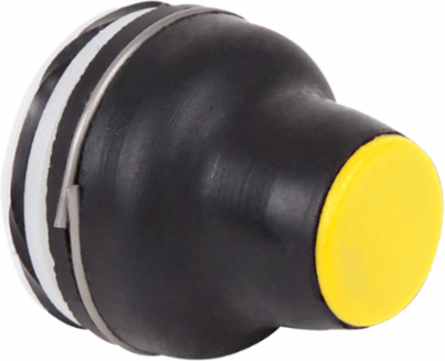

Schneider Electric XACB9115 Booted Head for Pushbutton - Yellow, 4 mm, -25 to 70 °C, IP65
- MPN: XACB9115
- PPN: SCH-XACB9115
CAD
$11.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Schneider Electric presents a reliable and robust booted head designed for pushbutton applications, ideal for a range of automated control systems. Engineered to operate effectively within a temperature range of -25 to 70 °C, this yellow booted head not only offers visibility but also ensures durability with its IP65 rating, making it resistant to dust and water ingress. Perfectly suited for pendant stations, it enhances the functionality of your pilot devices while providing ease of use in various industrial environments.
Documentation & Downloads
Specifications
Additional
- Operating Travel
- 4 mm (0.16 in)
- Ambient Air Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
- Vibration Resistance
- 15 gn 10-500 Hz IEC 60068-2-6
- IK Degree of Protection
- IK08 IEC 62262
- Standards
- IEC 60947-5-1, CSA C22.2 No 14
- Net Weight
- 0.005 kg
- Product Or Component Type
- head for push-button
- Manufacturer Warranty
- 18 months
- Toxic Heavy Metal Free
- Yes
- China RoHS Regulation
- Yes
- REACH SVHC Free
- Yes
- Component Name
- XACB
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Shock Resistance100 gn IEC 60068-2-27
IP Degree of ProtectionIP65 IEC 60529
Electrical Shock Protection ClassClass II IEC 61140
Materialbooted operator
Cap ColourYellow
Product CompatibilityXEND..., XENC..., XESD2251, XENB..., XESD2241, XESB2011, XESD2201
Mercury FreeYes
RoHS CompliancePro-active compliance (out of EU RoHS legal scope)
Reach ComplianceFree of Substances of Very High Concern above threshold
Markingunmarked
Range of ProductHarmony XAC
