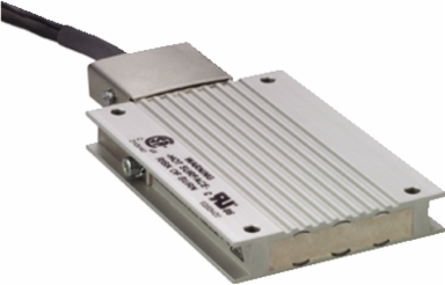

Schneider Electric VW3A7605R30 Braking Resistor 72 Ohm 100 W with 3 m Cable and IP65 Protection

MPN: VW3A7605R30
PPN: SCH-VW3A7605R30
UNSPSC: 39122001

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$672.95

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This braking resistor from Schneider Electric is designed to enhance the performance of variable speed drives through effective energy dissipation. With a resistance of 72 Ohms and a power rating of 100 Watts, it efficiently manages excess energy generated during braking operations. The included 3-meter cable offers flexibility in installation, while its IP65 protection ensures resilience against dust and water, making it suitable for demanding environments. This reliable component is essential for optimizing the operation of your drive systems, ensuring they run smoothly and safely.

Features

Dissipates excess braking energy
Easy to select and order thanks to the just enough number of references
Easy to mount and wire up
Specially designed for simple machines

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia

Physical Attributes

Cable Length	3 m

Important Information Attributes

Persona Type Ids	EU, OM
Range Of Product	Lexium, Altivar
Local Publishable Date	2026-01-12
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2017
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
Average Power Available	25 W 50 °C
Energy Peak	2300 J 480 V2500 J 400 V3700 J 230 V5500 J 115 V
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protection Type	thermal protection via the servo drive
Sustainable Packaging	No
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	End User, Original Equipment Manufacturer
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Continuous Power	100 W
Ohmic Value	72 Ohm
Product Or Component Type	braking resistor
Returnability	No
Accessory / Separate Part Category	protection accessories
Customs Code	8533390080

Environment Attributes Main

Ambient Air Temperature For Storage	-25-85 °C, -25-85 °C
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Product Compatibility	motion servo drive LXM16D 1.5 kW, 200...230 V, single phaseATV32HU11M2, ATV32HU15M2, variable speed drive ATV320 1.1 kW, 200...240 V, single phase, variable speed drive ATV320 1.5 kW, 200...240 V, single phasemotion servo drive LXM16D 0.1 kW, 200...230 V, single phase, motion servo drive LXM16D 0.2 kW, 200...230 V, single phase, motion servo drive LXM16D 0.4 kW, 200...230 V, single phase, motion servo drive LXM16D 0.75 kW, 200...230 V, single phase, motion servo drive LXM16D 1 kW, 200...230 V, single phase
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Ambient Air Temperature For Operation	0-50 °C
Ip Degree Of Protection	IP65
Packaging Without Single Use Plastic	No
