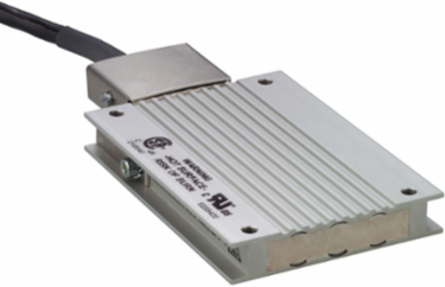

Schneider Electric VW3A7601R20 Braking Resistor 10 Ohm 400 W 2 m Cable IP65
- MPN: VW3A7601R20
- PPN: SCH-VW3A7601R20
CAD
$576.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric VW3A7601R20 Braking Resistor is engineered to enhance the efficiency of your motion control applications. With a resistance of 10 Ohms and a power rating of 400 Watts, this component effectively dissipates excess energy during deceleration, ensuring smooth operation and longevity of your servo drives. It comes equipped with a durable 2-meter cable and boasts an IP65 rating, making it suitable for a variety of demanding environments. This braking resistor is an essential element in automation and control systems, delivering reliable performance and contributing to the overall effectiveness of your machinery.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Germany, France
Physical Attributes
- Cable Length
- 2 m
Important Information Attributes
- Energy Peak
- 7300 J 400 V, 7300 J 480 V13300 J 230 V18800 J 115 V
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Applicability
- Component
- Weee Exclusion Rationale
- Component not in scope – non independent function
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Ohmic Value
- 10 Ohm
- Product Or Component Type
- braking resistor
- Returnability
- Yes
- Accessory / Separate Part Category
- protection accessories
- Package Weight(Lbs)
- 1.470 kg
- Warranty (In Months)
- 18
Range Of ProductAltivar, Lexium
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeVariable speed drive - VSD option & accessory
TraceabilityNo
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2010
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Continuous Power400 W
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protection Typethermal protection via the servo drive
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504409550
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-85 °C, -25-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- 0-50 °C
- Ip Degree Of Protection
- IP65
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Range Of Product
- Altivar, Lexium
Product Or Component Typebraking resistor
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
