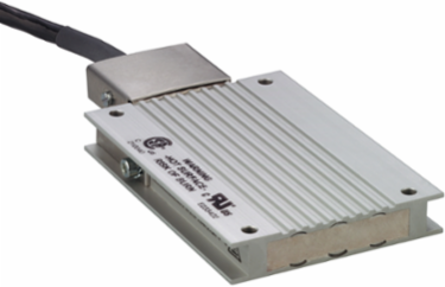

Schneider Electric VW3A7606R30 Braking Resistor 72 Ohm 200 W IP65 3 Meter Cable

Braking Resistor 72 Ohm 200 W IP65 3 Meter Cable
  • MPN: VW3A7606R30
  • PPN: SCH-VW3A7606R30

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$476.86/ EA

    Description

    This braking resistor from Schneider Electric, featuring an impedance of 72 Ohms and a power rating of 200 Watts, is specifically designed to enhance the efficiency of motion control applications. With an IP65 rating, it provides excellent protection against dust and water ingress, ensuring reliable operation even in challenging environments. The inclusion of a 3-meter cable allows for flexible installation options, making it a versatile choice for various automation and control projects. Whether you're upgrading existing systems or designing new ones, this braking resistor is engineered to meet the demanding requirements of modern control technologies.

    Specifications

    Power (Continuous)
    200 W
    Energy Peak
    6000 J at 480 V, 6600 J at 400 V, 9600 J at 230 V, 14600 J at 115 V
    Cable Length
    3 m (9.84 ft)
    Storage Ambient Temperature
    -25 to 85 °C (-13 to 185 °F)
    IP Degree of Protection
    IP65
    Material Compliance
    RoHS Exempt, REACH SVHC Free, Toxic Heavy Metal Free, Mercury Free
    Range Compatibility
    Lexium 32i, Lexium 28, Altivar 32, Lexium 52, Altivar Machine ATV320, Lexium 15, Lexium 05, Lexium 32, Easy Lexium 16
    Warranty
    18 months
    Average Power Available50 W at 50 °C
    Ohmic Value72 Ohm
    Operating Ambient Temperature0 to 50 °C (32 to 122 °F)
    Protection TypeThermal protection via servo drive
    Net Weight1.2 kg (2.65 lb)
    Product TypeBraking resistor
    Product CompatibilityATV32HU30N4, ATV32HU40N4, variable speed drive ATV320 3 kW 380...500 V three phase, variable speed drive ATV320 4 kW 380...500 V three phase, variable speed drive ATV320 4 kW 525...600 V three phase, motion servo drive LXM16D 0.1 kW 200...230 V single phase, motion servo drive LXM16D 0.2 kW 200...230 V single phase, motion servo drive LXM16D 0.4 kW 200...230 V single phase, motion servo drive LXM16D 0.75 kW 200...230 V single phase, motion servo drive LXM16D 1 kW 200...230 V single phase, motion servo drive LXM16D 1.5 kW 200...230 V single phase
