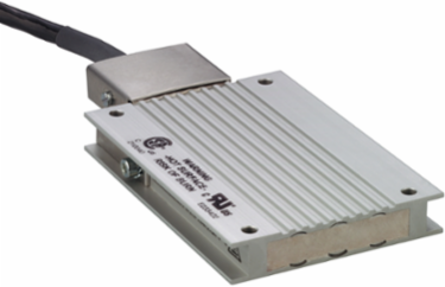

Schneider Electric VW3A7603R30 Braking Resistor 27 Ohm 200 W IP65 3 Meter Cable

MPN: VW3A7603R30
PPN: SCH-VW3A7603R30

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$491.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric VW3A7603R30 Braking Resistor is engineered to enhance motion control systems, offering reliable performance in demanding automation applications. With a resistance of 27 Ohms and a robust power rating of 200 W, this IP65-rated brake resistor is designed to withstand harsh environments while providing optimal braking capability. Its integrated 3-meter cable ensures straightforward installation, making it an ideal choice for those seeking to improve the efficiency and safety of their servo drive systems. Embrace the reliability and durability that Schneider Electric delivers for your automation needs.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Czechia, Germany

Physical Attributes

Cable Length	3 m

Important Information Attributes

Persona Type Ids	EU, OM
Range Of Product	Altivar, Lexium
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2017
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
Average Power Available	50 W 50 °C
Energy Peak	4300 J 480 V4900 J 400 V7400 J 230 V9700 J 115 V
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protection Type	thermal protection via the servo drive
Sustainable Packaging	No
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8533390080

Persona Type Names	End User, Original Equipment Manufacturer
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Continuous Power	200 W
Ohmic Value	27 Ohm
Product Or Component Type	braking resistor
Returnability	Yes
Accessory / Separate Part Category	protection accessories
Package Weight(Lbs)	1.21 kg
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Storage	-25-85 °C, -25-85 °C
Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Product Compatibility	ATV32HU22M2, variable speed drive ATV320 2.2 kW, 200...240 V, single phasemotion servo drive LXM16D 0.75 kW, 200...230 V, single phase, motion servo drive LXM16D 1 kW, 200...230 V, single phase, motion servo drive LXM16D 1.5 kW, 200...230 V, single phase
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Ambient Air Temperature For Operation	0-50 °C
Ip Degree Of Protection	IP65
Packaging Without Single Use Plastic	No
