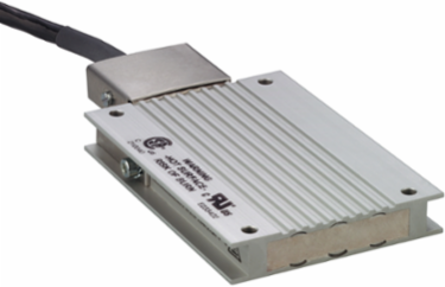

Schneider Electric VW3A7607R30 Braking Resistor 72 Ohm 400 W 3 m Cable IP65
- MPN: VW3A7607R30
- PPN: SCH-VW3A7607R30
CAD
$626.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric VW3A7607R30 Braking Resistor is engineered to provide reliable performance in automation and control applications, boasting a resistance of 72 Ohms and a power rating of 400 Watts. This component is particularly essential for motion control systems, as it effectively dissipates excess energy during braking, enhancing system efficiency and reliability. With a robust 3-meter cable and an IP65 rating, it ensures durability and protection against dust and water ingress, making it suitable for a wide range of industrial environments. This braking resistor is an indispensable asset for servo drives, ensuring smooth operation and extended lifespan of your motor systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Germany
Physical Attributes
- Cable Length
- 3 m
Important Information Attributes
- Persona Type Ids
- EU, OM
- Range Of Product
- Lexium, Altivar
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Variable speed drive - VSD option & accessory
- Traceability
- No
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2017
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Continuous Power
- 400 W
- Ohmic Value
- 72 Ohm
- Product Or Component Type
- braking resistor
- Returnability
- Yes
- Accessory / Separate Part Category
- protection accessories
- Package Weight(Lbs)
- 1.62 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ApplicabilityComponent
Weee Exclusion RationaleComponent not in scope – non independent function
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Energy Peak15500 J 480 V16200 J 400 V24700 J 230 V36600 J 115 V
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protection Typethermal protection via the servo drive
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8533390080
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-85 °C, -25-85 °C
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Product Compatibilitymotion servo drive LXM16D 0.1 kW, 200...230 V, single phase, motion servo drive LXM16D 0.2 kW, 200...230 V, single phase, motion servo drive LXM16D 0.4 kW, 200...230 V, single phase, motion servo drive LXM16D 0.75 kW, 200...230 V, single phase, motion servo drive LXM16D 1 kW, 200...230 V, single phase, motion servo drive LXM16D 1.5 kW, 200...230 V, single phase
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Ambient Air Temperature For Operation0-50 °C
Ip Degree Of ProtectionIP65
Packaging Without Single Use PlasticNo
General Attributes
- Range Of Product
- Lexium, Altivar
Product Or Component Typebraking resistor
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
