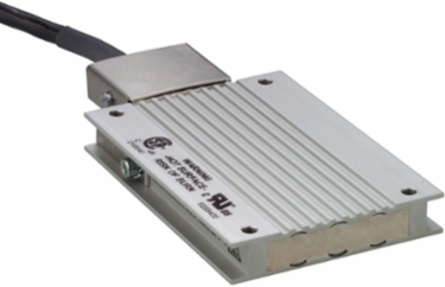

Schneider Electric VW3A7604R30 Braking Resistor 27 Ohm 400 W Cable 3 m IP65

MPN: VW3A7604R30
PPN: SCH-VW3A7604R30

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$626.31

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This braking resistor from Schneider Electric is designed to enhance the performance of servo drives, providing reliable control in motion applications. With a resistance of 27 Ohms and a power rating of 400 Watts, it effectively manages energy dissipation, ensuring smooth stopping and safe operation of your machinery. The included 3-meter cable supports easy installation, and its IP65 rating means it s built to withstand dust and moisture, making it suitable for demanding industrial environments. Whether you are upgrading existing equipment or designing new systems, this component plays a crucial role in maintaining optimal functionality and operational safety.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Czechia, Germany, France

Physical Attributes

Cable Length	3 m

Important Information Attributes

Range Of Product	Lexium, Altivar
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	Variable speed drive - VSD option & accessory
Traceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2010
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Average Power Available	100 W 50 °C
Energy Peak	10500 J 480 V11400 J 400 V18100 J 230 V25500 J 115 V
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protection Type	thermal protection via the servo drive
Sustainable Packaging	No
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8533390080

Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	No
Weee Applicability	Component
Weee Exclusion Rationale	Component not in scope – non independent function
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Continuous Power	400 W
Ohmic Value	27 Ohm
Product Or Component Type	braking resistor
Returnability	No
Accessory / Separate Part Category	protection accessories
Package Weight(Lbs)	1.725 kg
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Storage	-25-85 °C, -25-85 °C
Take Back	No
China Rohs Regulation	X
Ambient Air Temperature For Operation	0-50 °C
Ip Degree Of Protection	IP65
Packaging Without Single Use Plastic	No

Product Compatibility	variable speed drive ATV320 7.5 kW, 525...600 V, three phase, ATV32HU55N4, ATV32HU75N4, variable speed drive ATV320 5.5 kW, 380...500 V, three phase, variable speed drive ATV320 7.5 kW, 380...500 V, three phase, variable speed drive ATV320 5.5 kW, 525...600 V, three phase, motion servo drive LXM16D 0.75 kW, 200...230 V, single phase, motion servo drive LXM16D 1 kW, 200...230 V, single phase, motion servo drive LXM16D 1.5 kW, 200...230 V, single phase
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
