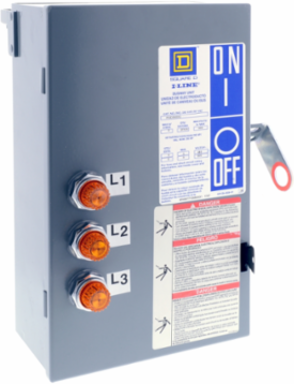

Square D PGD3600G Busway, I-Line, plug in unit, 600V, 3W, ground detector
- MPN: PGD3600G
- UPC: 785901086987
- PPN: SCH-PGD3600G
CAD
$3969.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options up to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations, with Aluminum or Copper conductors, for system voltages up to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This ground detector plug-in unit is 600VAC, 3 phase, 3 wire which indicates when one of the phases of a ungrounded delta system becomes grounded. I-Line Busway plug-in units are UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Important Information Attributes
- Certificate Agency
- UL listed file E22182, CSA C22.2 No 27
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- Busway & cable - LV busway
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Local Signalling
- amber indicator
- Phase
- 3 phase
- Product Or Component Type
- indicator module
- Returnability
- No
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1410002EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536308000
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Energy Efficiency OptimizedFalse
Mounting Modeplug-in
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductI-Line
Signalling Functionground indicator
Wiring Configuration3-wire (integral ground bus)
[Ue] Rated Operational Voltage600 V delta AC
Package Weight(Lbs)17.104 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP1410002EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1410002EN
General Attributes
- Phase
- 3 phase
- Range Of Product
- I-Line
Product Or Component Typeindicator module
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
