Balluff

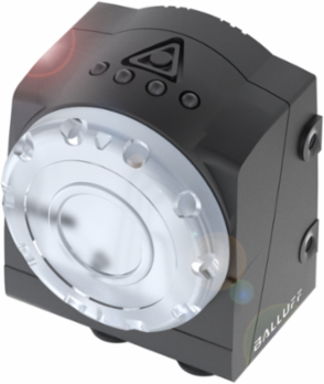

Balluff BVS UR-3-005-E Universal Vision Sensor 0.3 MP, 51.5 x 70 x 40 mm, IP54

Universal Vision Sensor 0.3 MP, 51.5 x 70 x 40 mm, IP54
  • MPN: BVS UR-3-005-E
  • PPN: BAL-BVS001L

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4779.33/ EA

Specifications

Specifications

Country of Origin
Italy
Image resolution
0.3 MP (640 x 480 pixels)
Application
360° detection; Barcode-, 2D-, OCR identification
Field of view
34 x 25 mm ... 676 x 507 mm
Light type
LED Red light
Dimension
51.5 x 70 x 40 mm
Interface
RS232 (9.6...115.2 kBaud)
Connection 2
M12x1-Male, 4-pin, D-coded
Ambient temperature
-10...55 °C
IP rating
IP54
Sensor type VisionCMOS image sensor black-white
Detection rate typ.3…40 Hz
Range50...1000 mm
Focal length6.0 mm
Housing materialAluminum, Die casting, Painted; ABS
Switching output3x PNP Normally open (NO)
Connection 1M12x1-Male, 8-pin, A-coded
Operating voltage Ub22...26 VDC
Approval/ConformityCE; cULus; WEEE

Downloads
