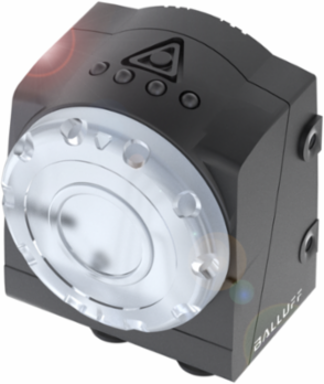

Balluff BVS UR-3-001-E BVS-E Universal Vision Sensor, CMOS, 0.3 MP, IP54, 51.5 x 70 x 40 mm
- MPN: BVS UR-3-001-E
- PPN: BAL-BVS001M
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
BVS-E Universal Vision Sensor, CMOS, 0.3 MP, IP54, 51.5 x 70 x 40 mm
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 22...26 VDC
- Range
- 50...1000 mm
- Focal Length
- 8.0 mm
- Sensor Type
- CMOS image sensor black-white
- Dimensions
- 51.5 x 70 x 40 mm
- Connection 1
- M12x1-Male, 8-pin, A-coded
- IP Rating
- IP54
- Compliance
- CE; cULus; WEEE
Detection Rate3,640 Hz
Field of View24 x 18 mm ... 480 x 360 mm
Image Resolution0.3 MP (640 x 480 pixels)
Ambient Temperature-10...55 °C
Housing MaterialAluminum die casting, painted; ABS
Connection 2M12x1-Male, 4-pin, D-coded
Light TypeLED Red light
Country of OriginItaly
