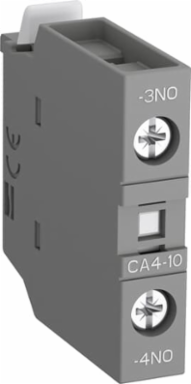

ABB CA4-10 Front Mount Auxiliary Contact Block, 1 No, Rated Frequency 50Hz/60Hz
- MPN: CA4-10
- UPC: 804325546232
- PPN: ABB-CA4-10
CAD
$34.92
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Front Mount Auxiliary Contact Block, 1 No, Rated Frequency 50Hz/60Hz
Specifications
Additional
| Rated Frequency | 50 Hz, 60 Hz |
|---|---|
| Rated Operational Current AC-15 | 4 A (220 / 240 V), 6 A (24 / 127 V), 2 A (500 V), 2 A (690 V), 3 A (400 / 440 V) |
| Conventional Free-air Thermal Current | 16 A |
| Rated Short-time Withstand Current | 1.0 s |
| Maximum Mechanical Switching Frequency | 3600 cycles/hour |
| Number of Contacts | 1 Normally Open (1 NO) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 11 IA |
| Wire Stripping Length | 10 mm |
| Dimensions | 100 mm Width, 100 mm Depth / Length |
| Rated Operational Voltage | 24 ... 690 V |
|---|---|
| Rated Operational Current DC-13 | 0.55 A (125 V), 6 A (24 V), 2.7 A (250 V), 2.8 A (48 V), 1 A (72 V), 0.55 A (110 V), 0.27 A (220 V), 0.15 A (400 V), 0.13 A (500 V), 0.1 A (600 V) |
| Rated Insulation Voltage | 600 V (UL/CSA), 690 V (IEC 60947-5-1, VDE 0110 Gr. C) |
| Maximum Electrical Switching Frequency | AC-15 1200 cycles/hour, DC-13 900 cycles/hour |
| Secondary Rated Impulse Withstand Voltage | 6 kV |
| Mounting Type | Front Mount |
| Block Type | CA4 |
| Connecting Capacity Auxiliary Circuit | Flexible Ferrule 1/2x 0.75 ... 2.5 mm2, Flexible with Insulated Ferrule 1x 0.75 ... 2.5 / 2x 0.75 ... 1.5 mm2, Rigid 1/2x 1 ... 2.5 mm2 |
| Product Net Weight | 0.014 kg |
