Schneider Electric K10D004QCH Harmony K Cam Stepping Switch, 1 Pole, 30x30mm, 10A, 4 Steps
Schneider Electric K10D004QCH Harmony K Cam Stepping Switch, 1 Pole, 30x30mm, 10A, 4 Steps
- MPN: K10D004QCH
- PPN: SCH-K10D004QCH
- UNSPSC: 39122217
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$88.85/ EA
Description

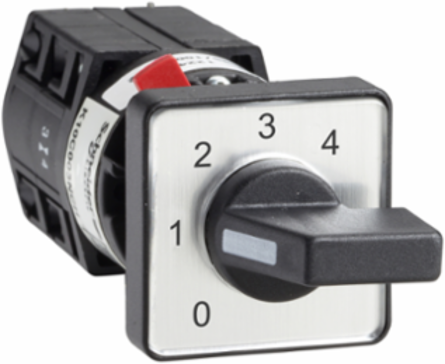

This Harmony K10 cam stepping switch has 1 pole (1P). It also has a rating of 10A, a screw clamp mounting mode and a metallic color with black marking. It has "0 - 1 - 2 - 3 - 4" marking to indicate the position of the switch. This metal head cam stepping switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 30 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.
Features
- Its high IP allows for handling of panel operations in very dusty and wet environments, including outdoors
- Wide availability throughout an extensive distribution network
- Ideal for direct control of simple machines
- Operates from -20°C to 55°C for versatile use in various environments
Specifications
Physical Attributes
- Cad Overall Depth
- 88 mm
- Cad Overall Width
- 30 mm
Cad Overall Height30 mm
Conformance Attributes
- Standards
- CENELEC EN 50013, EN/IEC 60947-3, EN/IEC 60947-5-1
Product CertificationscULus
Complementary Attributes
- Rated Operational Power In W
- 370 W AC-23A, 110/120 V 1 phase, 750 W AC-23A, 220/240 V 1 phase
Rated Power In HP0.33 hp 110/120 V AC, 1 phase, 0.75 hp 220/240 V AC, 1 phase
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Ie Rated Operational Current Ac2
- 10 A 400 V AC-1, 10 A 400 V AC-21A, 3 A 240 V AC-15, 6 A 120 V AC-15
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1 kg CO2 eq., 0.08242831808319795
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 1 kg CO2 eq., 1.2336576935318702
- Ie Rated Operational Current Dc2
- 10 A 24 V resistive, 0.3 A 220 V resistive, 0.7 A 110 V resistive
- Ie Rated Operational Current Dc5
- 10 A 24 V resistive, 0.3 A 220 V resistive, 0.7 A 110 V resistive
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Cam Switch Head Type
- with front plate 30 x 30 mm
- Component Name
- K10
- Electrical Connection
- captive screw clamp terminals 2 x 1.5 mm²
- Electrical Shock Protection Class
- class II conforming to IEC 60536
- Mechanical Durability
- 1000000 cycles
- Package Weight Lbs
- 67.0 g
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- complete cam switch
- Range Of Product
- Harmony K
- Returnability
- Yes
- Short Circuit Protection
- 10 A cartridge fuse gG
- Switching Angle
- 30 °
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ui Rated Insulation Voltage2
- 440 V 3)IEC 60947-1
- Medium Desc
- Cam stepping switch, Harmony K, 16mm or 22mm, plastic, 1 poles,position 0, 4 steps+position 0, 30 degree, 10A, 30x30mm, marked 0/1/2/3/4
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- The main purpose of the Harmony K1/K2 series of cam switches is to directly control simple machines and to provide process control in industry and buildings. This voltmeter phase switch offers the maximum mechanical and electrical robustness of its class for prolonged operation without maintenance. Its high IP allows for handling of panel operations in very dusty and wet environments including outdoors.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; High voltage; 2020; Czech Republic, CZ
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; Global, GLO
- Global Commercial Status
- Commercialised
- Uimp Rated Impulse Withstand Voltage5
- 4 kV IEC 60947-1
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.047316833339437994, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.011618389625235113, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Ie Rated Operational Current Ac510 A 400 V AC-1, 10 A 400 V AC-21A, 3 A 240 V AC-15, 6 A 120 V AC-15
Local Data StatusPublishable
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Cam Switch Functionstepping switch
Compatibility CodeK10
Contact Operationslow-break
Electrical Durability100000000 cycles
Fixing ModeØ 16 or 22 mm hole
Off Positionwith Off position
Poles Description1P
Product Mountingfront mounting
Protective TreatmentTC
Returnwithout
Rotary Handle Padlockingwithout
Sustainable PackagingYes
Switching Positionsright: 270° - 300° - 330° - 0° - 30°
Type Of OperatorBlack handle
Ith Conventional Free Air Thermal Current210 A
Uimp Rated Impulse Withstand Voltage24 kV IEC 60947-1
Stocking FlagN
Pep CodeENVPEP2312055EN
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Ui Rated Insulation Voltage5440 V 3)IEC 60947-1
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- contact block: IP20, operating head: IP65 conforming to IEC 60529
- Reach Free SHVC
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-55 °C
- Environmental Disclosure
- ENVPEP2312055EN
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint1.3750212345797412
Ambient Air Temperature For Storage-40-70 °C
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP2312055EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- complete cam switch
Range Of ProductHarmony K
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Presentation Of Legend
- with metallic, 0 - 1 - 2 - 3 - 4 black
