Schneider Electric K2C003QCH Cam stepping switch, Harmony K, Ø 22mm, plastic, 1 pole, 3 steps, position 0, 45°, 20A, 45x45mm,metallic legend, marked 0/1/2/3, 35mm black handle

Cam stepping switch, Harmony K, Ø 22mm, plastic, 1 pole, 3 steps, position 0, 45°, 20A, 45x45mm,metallic legend, marked 0/1/2/3, 35mm black handle

MPN: K2C003QCH
PPN: SCH-K2C003QCH

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$80.65/ EA

Qty:

Loading add to cart quantity...

Description

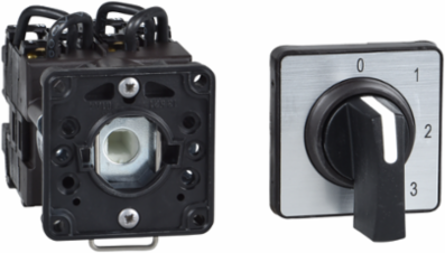

Cam stepping switch, Harmony K, Ø 22mm, plastic, 1 pole, 3 steps, position 0, 45°, 20A, 45x45mm,metallic legend, marked 0/1/2/3, 35mm black handle

Specifications

Environment

Ambient Air Temperature For Operation: -25-55 °C

Shock Resistance: 30 gn IEC 68-2-27

Standards: IEC 60947-3 power circuit || IEC 60947-5-1 control circuit || CENELEC EN 50013

Overvoltage Category: class II IEC 536 || class II NF C 20-030

Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6

Product CertificationsCSA 240 V 3 hp 3 phases 2 || UL 240 V 0.33 hp 1 phase 2 || CSA 240 V 1 hp 1 phase || UL 240 V 1 hp 3 phases

Ambient Air Temperature For Storage-40-70 °C

Protective TreatmentTC

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP071103EN_V1

Toxic Heavy Metal Free: Yes

Reach Free Of Svhc: Yes

China Rohs Regulation: X

Eu Rohs Directive: Pro-active compliance (Product out of EU RoHS legal scope)

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Reach RegulationFree of Substances of Very High Concern above the threshold

WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Circularity ProfileN/A

Complementary

Short-Circuit Protection: 20 A cartridge fuse gG

[Ithe] Conventional Enclosed Thermal Current: 16 A

[Uimp] Rated Impulse Withstand Voltage: 4 kV in isolating function || 6 kV IEC 947-1

Switching Angle: 45 °

Electrical Durability: 200000 cycles AC-23 || 200000 cycles AC-3 || 600000 cycles AC-15 || 600000 cycles AC-21

Short-Circuit Current: 10000 A

Positive Opening: with

Mechanical Durability: 1000000 cycles

Cad Overall Depth: 59 mm

Number Of Steps3

Net Weight0.155 kg

Cad Overall Height50 mm

Electrical Connectioncaptive screw clamp terminals flexible 2 x 1.5 mm² || captive screw clamp terminals solid 1 x 2.5 mm²

Maximum Operating Rate2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15

[Ui] Rated Insulation Voltage690 V 3)IEC 60947-1

Contact Operationslow-break

Cad Overall Width45 mm

Specifications

Range Of Product: Harmony K

Presentation Of Legend: with metallic, 0 - 1 - 2 - 3 black

Product Or Component Type: complete cam switch

Cam Switch Function: stepping switch

Type Of Operator: black handle 35 mm

Switching Positions: right: 0° - 45° - 90° - 135°

Poles Description: 1P

Return: without

Fixing ModeØ 22 mm hole

Ip Degree Of ProtectionIP65 conforming to IEC 60529

[Ith] Conventional Free Air Thermal Current20 A

Component NameK2

Mounting Locationfront

Cam Switch Head Typewith front plate 45 x 45 mm

Rotary Handle Padlockingwithout

Off Positionwith Off position
