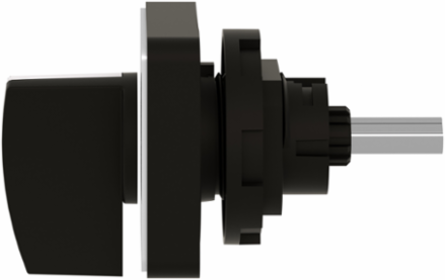

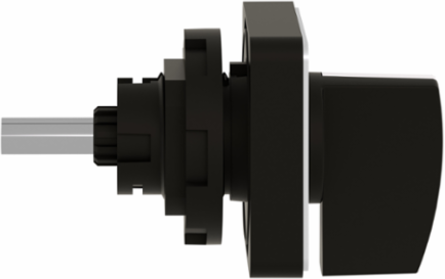

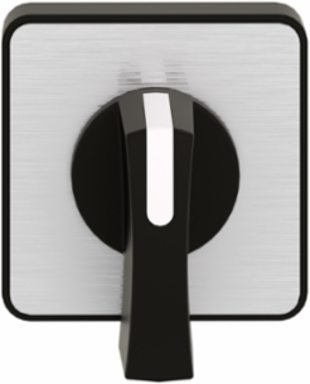

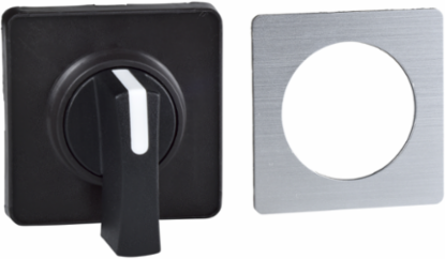

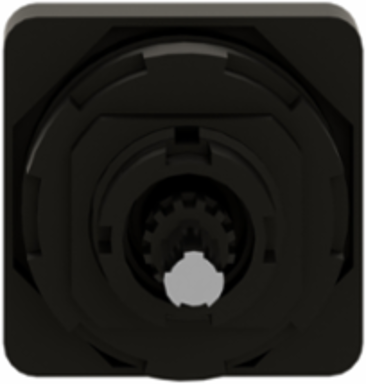

Schneider Electric KBC1H Cam Switch Operating Head, 22mm, IP65, 45x45mm, 1000000 Cycles
- MPN: KBC1H
- PPN: SCH-KBC1H
CAD
$28.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric KBC1H Cam Switch Operating Head is an essential component for enhancing automation and control in various applications. Designed with a compact 22mm size and a robust IP65 rating, it effectively resists dust and moisture, ensuring reliable operation in demanding environments. This device boasts an impressive durability of up to 1,000,000 cycles, making it a dependable choice for continuous use in pilot device setups. Its 45x45mm form factor allows for easy integration into existing systems, facilitating seamless functionality and performance.
Documentation & Downloads
Specifications
Additional
- Mechanical Durability
- 1000000 cycles
- Vibration Resistance
- 5 gn 10-150 Hz IEC 68-2-6
- Ambient Air Temperature for Storage
- -40 to 70 B0C
- Front Plate Size
- 45 x 45 mm
- CAD Overall Height
- 45 mm
- Length
- 35 mm
- Type of Operator
- black handle 35 mm
- Product Compatibility
- front mounting bodies 12 and 20 A D8 22 mm hole
- Presentation of Legend
- metallic
- RoHS Compliance
- RoHS compliant, free of SVHC, toxic heavy metals, mercury, China RoHS
- Component Name
- KBC
- Range of Product
- Harmony Series K
Shock Resistance30 gn IEC 68-2-27
Ambient Air Temperature for Operation-25 to 55 B0C
Mounting Hole Diameter22 mm
CAD Overall Width45 mm
CAD Overall Depth69 mm
Net Weight0.048 kg
Cam Switch Head Typewith front plate 45 x 45 mm
Protective TreatmentTC
IP Degree of ProtectionIP65 IEC 529 || IP65 NF C 20-010
Warranty18 months
Compatibility CodeKBC
Cam Switch Operating Headyes
