Schneider Electric

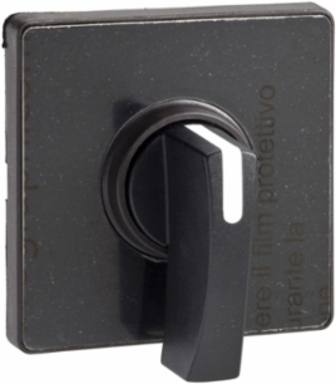

Schneider Electric KAD1H Cam switch operating head, Harmony K, Ø 22mm, plastic, 60x60mm plate, matt black legend, black handle

Cam switch operating head, Harmony K, Ø 22mm, plastic, 60x60mm plate, matt black legend, black handle
  • MPN: KAD1H
  • PPN: SCH-KAD1H

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$31.85/ EA

Description

Cam switch operating head, Harmony K, Ø 22mm, plastic, 60x60mm plate, matt black legend, black handle

Specifications

Environment

Ambient Air Temperature For Operation
-25-55 °C
Vibration Resistance
5 gn 10-150 Hz)IEC 68-2-6
Protective Treatment
TC
Ambient Air Temperature For Storage-40-70 °C
Shock Resistance30 gn IEC 68-2-27
Ip Degree Of ProtectionIP65 IEC 529 || IP65 NF C 20-010

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
X
Mercury Free
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of Svhc
Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold

Complementary

Mechanical Durability
1000000 cycles
Cad Overall Width
60 mm
Length
42 mm
Cad Overall Height
60 mm
Compatibility CodeKAD
Cad Overall Depth77 mm
Net Weight0.053 kg

Specifications

Range Of Product
Harmony Series K
Cam Switch Head Type
with front plate 60 x 60 mm
Rotary Handle Padlocking
without
Component Name
KAD
Product Compatibilityfront mounting bodies 12 and 20 A Ø 22 mm hole
Presentation Of Legendwith mat black
Product Or Component Typecam switch operating head
Type Of Operatorblack handle 42 mm
